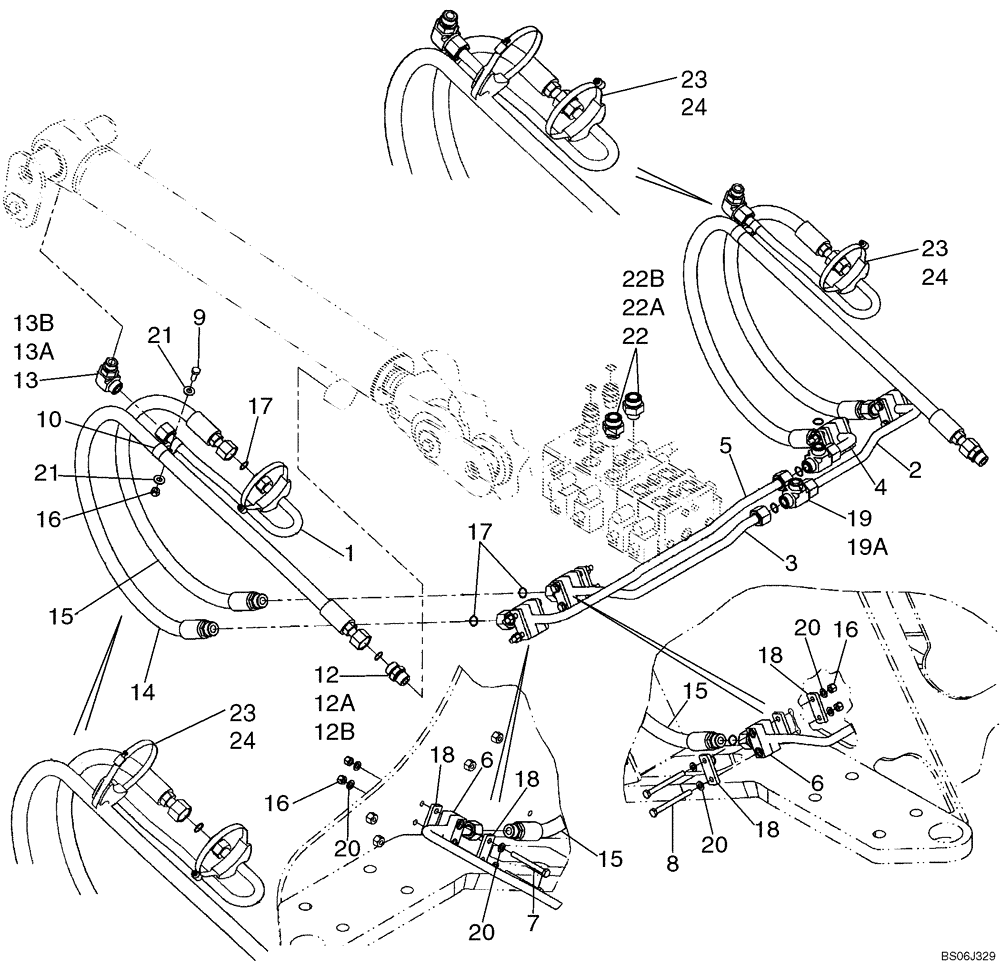

Запчасти Case 521D (08-04A) - HYDRAULICS - LOADER LIFT (Z BAR LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER LIFT; Z-BAR LOADER

1шт.

REF

INSTRUCTION

USED WITH OR WITHOUT RSM2-16 RIDE CONTROL OPTION

1шт.

1

86983364

TUBE,19.05 mm OD x 375, 67 mm L

Lift Cylinder

2шт.

2

8606056

TUBE,19.05 mm OD x 185, 373.5 mm L

Left Hand; Head End

1шт.

3

8606058

TUBE,19.05 mm OD x 454.5, 185 mm L

Right Hand; Head End

1шт.

4

8606062

TUBE,19.05 mm OD x 127, 87.5 mm L

Left Hand; Rod End

1шт.

5

8606064

TUBE,19.05 mm OD x 740.4, 181.4 mm L

Right Hand; Rod End

1шт.

6

379374A1

BLOCK

4шт.

7

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

8

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

If Used

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

11

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

2шт.

12

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 12A, 12B

2шт.

12a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

13

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 13A, 13B

2шт.

13a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

14

391053A1

HOSE ASSY.

1611 mm (63-1/2 in); Lift Cylinder

2шт.

15

417259A1

HOSE ASSY.

1536 mm (60-1/2 in)

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

8-10шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

6шт.

18

367658A1

PLATE

10шт.

19

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc sl; Incl. 19A

2шт.

19a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used

4шт.

22

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 21A, 22B

2шт.

22a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

23

391133A1

CLAMP

2-4шт.

24

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2-4шт.
