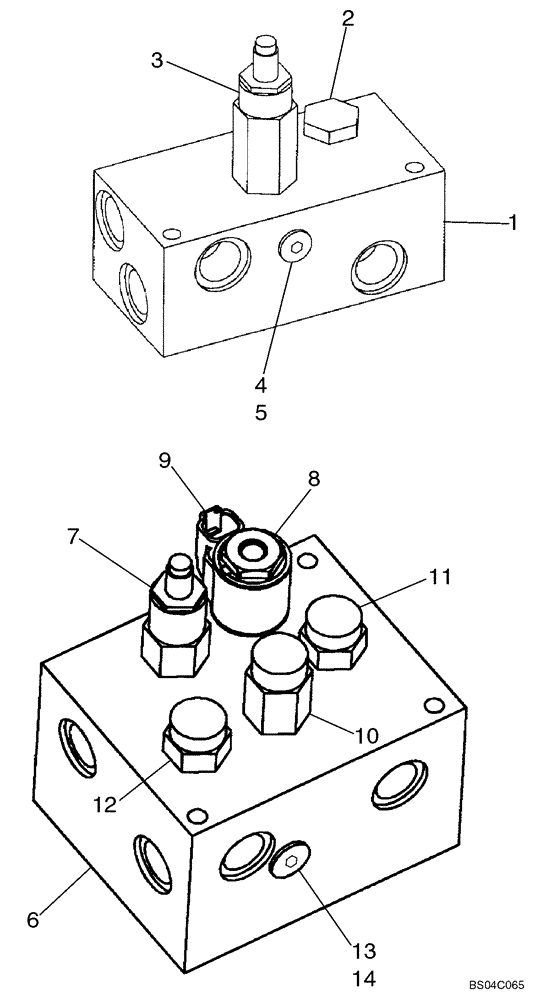

Запчасти Case 521D (02-09) - VALVE ASSY - FAN (02) - ENGINE

REF

INSTRUCTION

STANDARD FAN DRIVE

1шт.

8605141

VALVE, PRESSURE RELI

EF Models With Standard Fan Drive; Incl. Ref 1 - 5; Replaces 429361A2 Valve Used In Production

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

8605073

VALVE, CHECK

Includes 1542830C2 Seal Kit

1шт.

1542830C2

SEAL KIT

Incl (4) O-Rings, (1) Backup Ring, Which Are Not Serviced Separately

1шт.

3

86984141

VALVE PRESSURE RELIE

Includes 1542830C2 Seal Kit

1шт.

1542830C2

SEAL KIT

Incl (4) O-Rings, (1) Backup Ring, Which Are Not Serviced Separately

1шт.

4

9625178

PLUG,9/16" - 18 ORB

Incl. Ref 5

1шт.

REF

INSTRUCTION

REVERSIBLE FAN DRIVE

1шт.

8605147

VALVE

PRESSURE RELIEF; Models With Reversible Fan Drive; Incl. Ref 6 - 14; Replaces 445495A1 Valve Used In Production

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

8605152

VALVE PRESSURE RELIE

Includes 1542830C2 Seal Kit

1шт.

1542830C2

SEAL KIT

Incl (4) O-Rings, (1) Backup Ring, Which Are Not Serviced Separately

1шт.

8

8605066

VALVE PRESSURE RELIE

Solenoid Cartridge; Includes 329483A1 Seal Kit

1шт.

329483A1

SEAL KIT

Includes (3) O-Rings, (4) Backup Rings, Which Are Not Serviced Separately

1шт.

9

8605069

COIL

Electronic

1шт.

10

8605053

VALVE PRESSURE RELIE

Bi-Directional; Includes 1542833C1 Seal Kit

1шт.

1542833C1

SEAL KIT

1шт.

11

8605150

PILOT VALVE

Directional, Relief Cartridge; Includes 124639A1 Seal Kit

1шт.

124639A1

SEAL KIT

Includes (4) O-Rings, (6) Backup Rings, Which Are Not Serviced Separately

1шт.

12

8605151

PILOT VALVE

Directional, Relief Cartridge; Includes 124639A1 Seal Kit

1шт.

124639A1

SEAL KIT

Includes (4) O-Rings, (6) Backup Rings, Which Are Not Serviced Separately

1шт.

13

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
