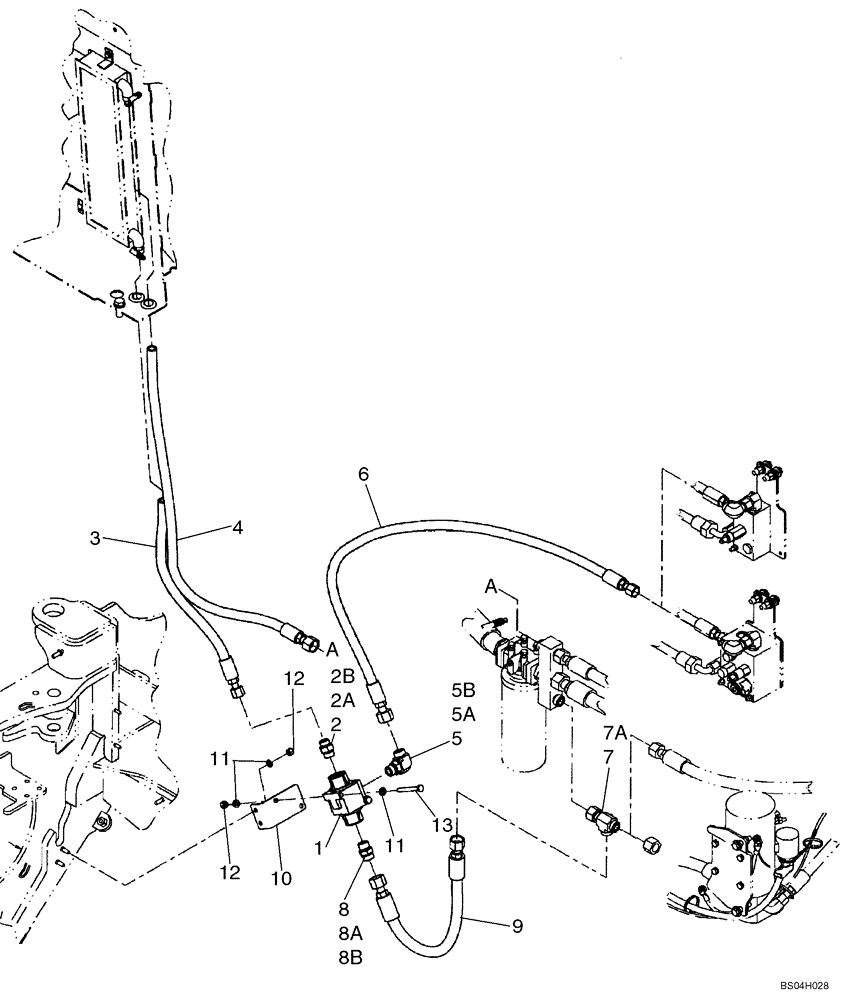

Запчасти Case 521D (08-02C) - HYDRAULICS - BYPASS (08) - HYDRAULICS

1

87453603

BY-PASS VALVE

Thermal Bypass; With M27 Thread Ports; If Used; No Service Breakdown Available

1шт.

1

87453603

BY-PASS VALVE

Thermal Bypass; With 1-1/16in Thread Ports; If Used; No Service Breakdown Available

1шт.

1

87326981

BY-PASS VALVE

Thermal Bypass; With M27 Thread Ports; If Used; No Service Breakdown Available

1шт.

87328377

REPAIR KIT

Repair For 87326981 Thermal Bypass Valve; Contains; Thermal Element Assy And Seals

1шт.

2

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Straight 16mm ORFS tube OD; Incl 2A, 2B

1шт.

2a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

2b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

(M15.6 ID x 1.78 Thk)

1шт.

2

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

5/8 ORFS x 3/4 ORB; Incl. Ref 2A, 2B; Used With 1-1/16in Thread Ports

1шт.

2a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

2b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

3

87453662

HOSE ASSY.

Bypass To Cooler; 644mm ( 25-1/3 in )

1шт.

4

87453666

HOSE ASSY.

Cooler to Filter; 1290mm ( 50-3/4 in )

1шт.

5

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 5A, 5B

1шт.

5a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

(M15.6 ID x 1.78 Thk)

1шт.

5b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

90deg; OR Jump; 3/4 x 5/8; Incl. Incl. 5A, 5B; Used With 1-1/16in Thread Ports

1шт.

5a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

87453663

HOSE ASSY.

Fan To Bypass; 1770mm ( 70in )

1шт.

7

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

20mm Or 3/4 in; Incl. 7A

1шт.

7a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

8

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 8A, 8B

1шт.

8a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

8

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 8A, 8B; Used with 1-1/16" Thread Ports

1шт.

8a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

87453664

HOSE ASSY.,Hyd, 3/4" ID x 712mm L

Bypass To Filter; 712mm ( 28in )

1шт.

10

87453679

BRACKET

Bypass Valve; If Used

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

M10 x 90; 10.9

2шт.

REF

INSTRUCTION

CLAMP TO HOLD BYPASS TO COOLER HOSE AWAY FROM FRAME

1шт.

REF

INSTRUCTION

IF USED

1шт.

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
