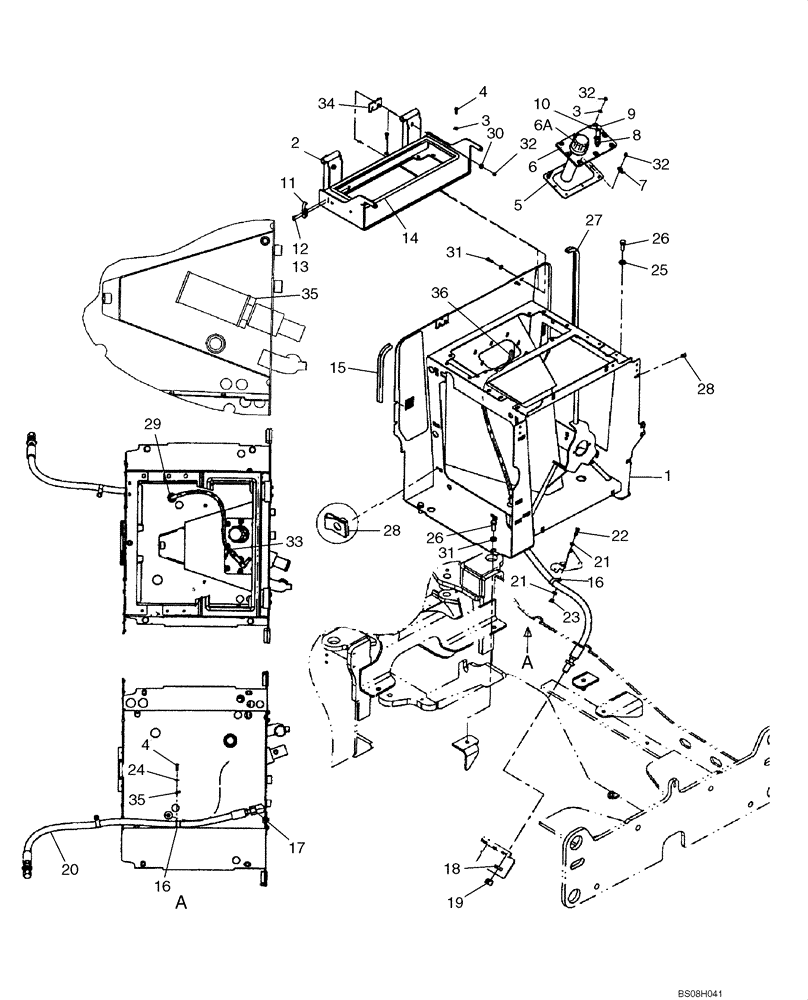

Запчасти Case 521D (08-01) - RESERVOIR (08) - HYDRAULICS

1

86984737

FRAME

Replaced by 87311569

1шт.

1

87311569

FRAME ASSY

Frame Cooling

1шт.

1

87381312

FRAME

Frame Cooling; Replaces 87311569

1шт.

2

398882A3

SUPPORT ASSY.

Reservoir

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

9шт.

5

379587A2

GASKET

1шт.

6

8606005

CAP

ASSY, Hydraulic Tank; Incl. Ref. 6A

1шт.

6a

87757884

FILLER CAP

Hydraulic Tank

1шт.

7

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

8

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

9

217-1142

TEE,3/8"-18 Female x 3/8"-18 Male Br

3/8 NPTF; If Used

1шт.

10

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

11

60-4640T1

LATCH

1шт.

12

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

13

225-14108

NUT,#8-32

2шт.

14

382665A1

SEAL

Air Conditioning Condenser; Not Illustrated

1шт.

15

394866A1

SEAL

Hood

1шт.

16

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

17

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 17A, 17B

1шт.

17a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

17b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

19

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

20

397439A1

HOSE ASSY.

1448 mm (57 in); Drain

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

25

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

26

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

27

394867A1

SEAL

354 mm (14 in); Hood; Cut From L107724

1шт.

28

833-40408

NUT,M8, U

25шт.

29

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

30

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

8шт.

31

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

4шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

33

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

34

426945A1

PLATE

Shim

2шт.

35

L128515

STRAINER ELEMENT

Hydraulic Tank

1шт.

36

408523A1

HOSE

1630 mm (64-3/16 in)

1шт.
