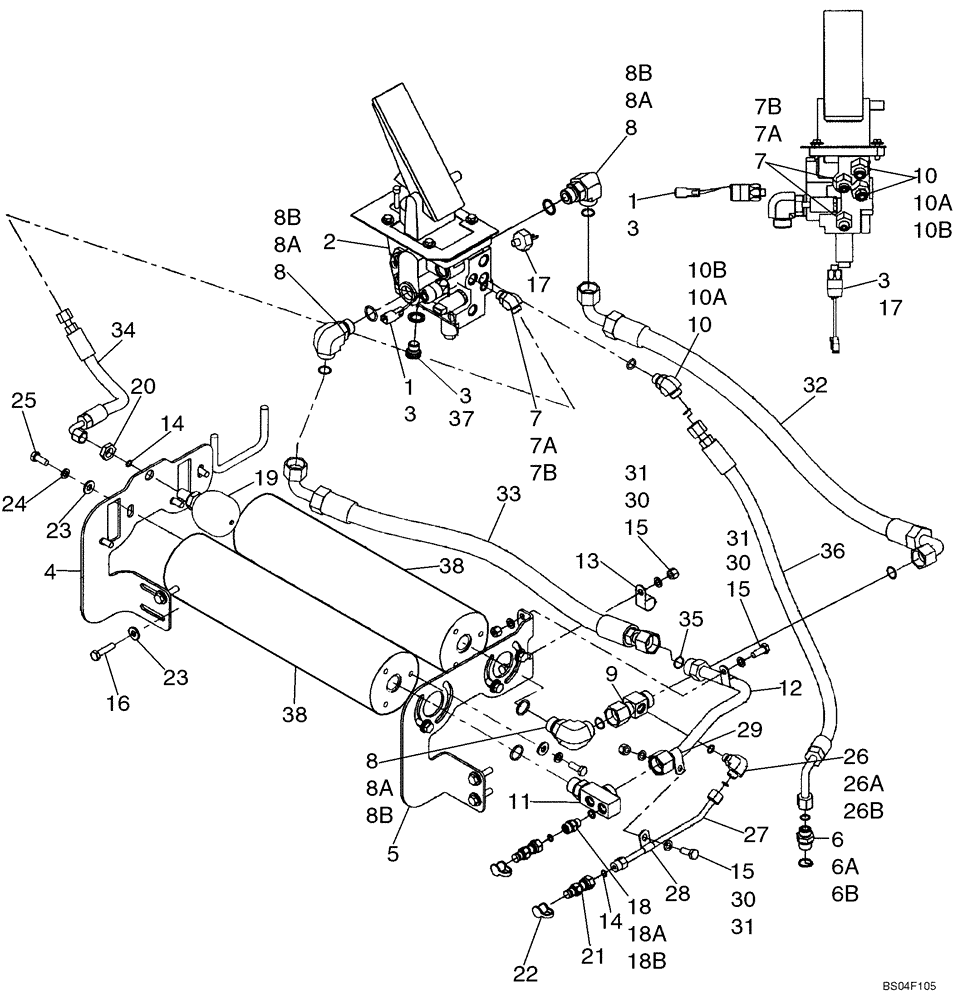

Запчасти Case 521D (07-05B) - HYDRAULICS - BRAKE, MAIN - IF USED (07) - BRAKES

1

87395739

Brake Warning; If Used

1шт.

2

8603091

VALVE

Brake

1шт.

3

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

No Longer Required For Use With Brake Light Pressure Switch 87307240; Quanity Changed To (1)

1шт.

4

87436620

BRACKET

Accumulator

1шт.

5

87439687

BRACKET

Accumulator; Rear

1шт.

6

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 6A, 6B

1шт.

6a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

7

700-374

45 ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 7A, 7B

2шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 8A, 8B

4шт.

8a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

8b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

372033A1

FITTING

Incl. 31

1шт.

10

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 10A, 10B

2шт.

10a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

11

86987640

FITTING

1-3/16 fc sl x M27 Or; Incl. 45, 46

1шт.

12

86988695

TUBE,19.05 mm OD x 231.50, 163.20 mm L

Left Accumulator

1шт.

13

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

23.8mm; M10 Bolt

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

16

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

17

5108180

PRESSURE SWITCH

Brake Light Pressure; Replaced By 87307240

1шт.

17

87307240

PRESSURE SWITCH

Pressure; Brake Light; Incl. O-Ring; Replaces 390431A2

1шт.

17

84177015

PRESSURE SWITCH

Brake Light; Replaces 87307240 Pressure Switch Used On Some Models

1шт.

18

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 18A, 18B

1шт.

18a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

18b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

8500209

ACCUMULATOR

Parking Brake

1шт.

20

701-909

NUT,11/16" - 16

M10

1шт.

21

243670A1

COUPLING

Diagnostic Check

2шт.

22

H434163

DUST CAP

2шт.

23

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

12шт.

24

892-11010

LOCK WASHER,M10

8шт.

25

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

26

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 26A, 26B

1шт.

26a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

26b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

27

86987041

TUBE,9.525 mm OD x 253, 25 mm L

Diagnostic

1шт.

28

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

9.5mm; M10 Bolt

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

30

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

32

86984593

HOSE

Accumulator; Right; 945mm ( 37-3/16 in )

1шт.

33

86984594

HOSE

810 mm ( 31-7/8 in ); Accumulator; Left Hand

1шт.

34

86988687

HOSE

391 mm ( 15-1/3 in ); Parking Brake Accumulator

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

36

366745A1

HOSE ASSY.

Fan Valve Supply; 809mm ( 31-7/8 in )

1шт.

37

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

1шт.

38

86984452

ACCUMULATOR

2шт.
