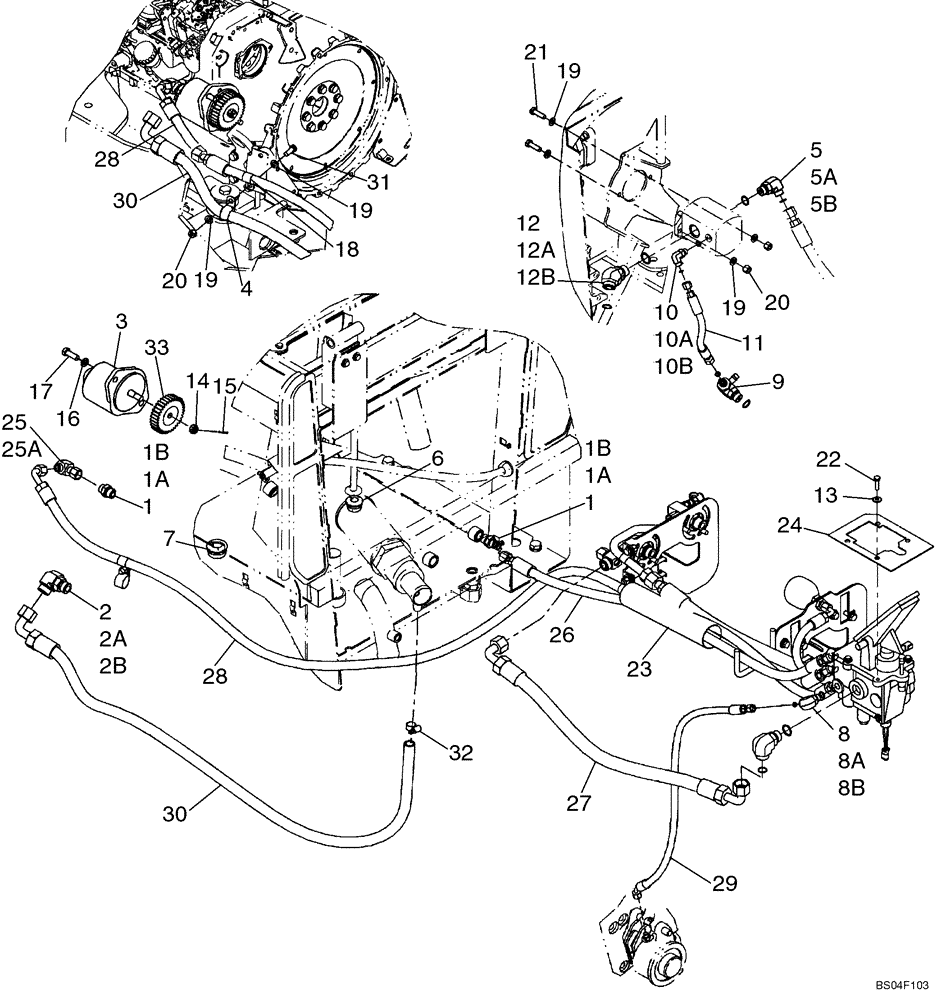

Запчасти Case 521D (07-05A) - HYDRAULICS - BRAKE, MAIN - IF USED (07) - BRAKES

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl.1A, 1B

1шт.

1a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

1b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 2A, 2B

4шт.

2a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3

87402776

HYDRAULIC PUMP,14 CC

Brake

1шт.

3

87402776R

REMAN-HYD PUMP

1шт.

3

87402776C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

(30.2mm; M10 Bolt)

1шт.

5

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

90 deg; 11/16 fc sl x 16 Or; Incl. 6A, 6B

1шт.

5a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

5b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

7

435214A1

GROMMET

1 x 1 x 3/4

1шт.

8

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

90 deg; 11/16 fc sl x M16 Orb; Incl. 8A, 8B

1шт.

8a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

9

372028A2

ELBOW

90 deg; Incl. 3, 4

1шт.

10

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

90 deg; 9/16 fc sl x M14 Or; Incl. 10A, 10B; Used With 87426773 Motor With M14 Drain Port On Side; If Used

1шт.

10a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

11

87427292

HOSE ASSY.,6.35mm ID x 260mm L, SAE 100R17

260 mm (10-1/4 in); Drain; Used With 87426773 Motor With M14 Drain Port On Side; If Used

1шт.

12

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 12A, 12B

1шт.

12a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

12b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2 mm

4шт.

14

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

15

432-616

COTTER PIN,3/32" x 1"

1шт.

16

892-11010

LOCK WASHER,M10

8шт.

17

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

18

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

(22.2mm; M10 Bolt)

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

23

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

24

414369A1

PLATE

1шт.

25

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

12 mm or 1/2" Tube OD; Incl. 25A

1шт.

25a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

26

366745A1

HOSE ASSY.

1117 mm (44 in); Brake Valve To Reservoir

1шт.

27

86984593

HOSE

970 mm ( 37 in ); Accumulator; Right Hand

1шт.

28

87403644

FLEXIBLE HOSE

Brake Pump Suction; 1550mm ( 61 in )

1шт.

29

367867A4

HOSE ASSY.

Park Brake; 852mm ( 33-1/2 in )

1шт.

30

87403644

FLEXIBLE HOSE

Brake Pump Suction; 1550mm ( 61 in )

1шт.

32

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

33

86985892

GEAR

Accessory Drive

1шт.

22

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

31

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
