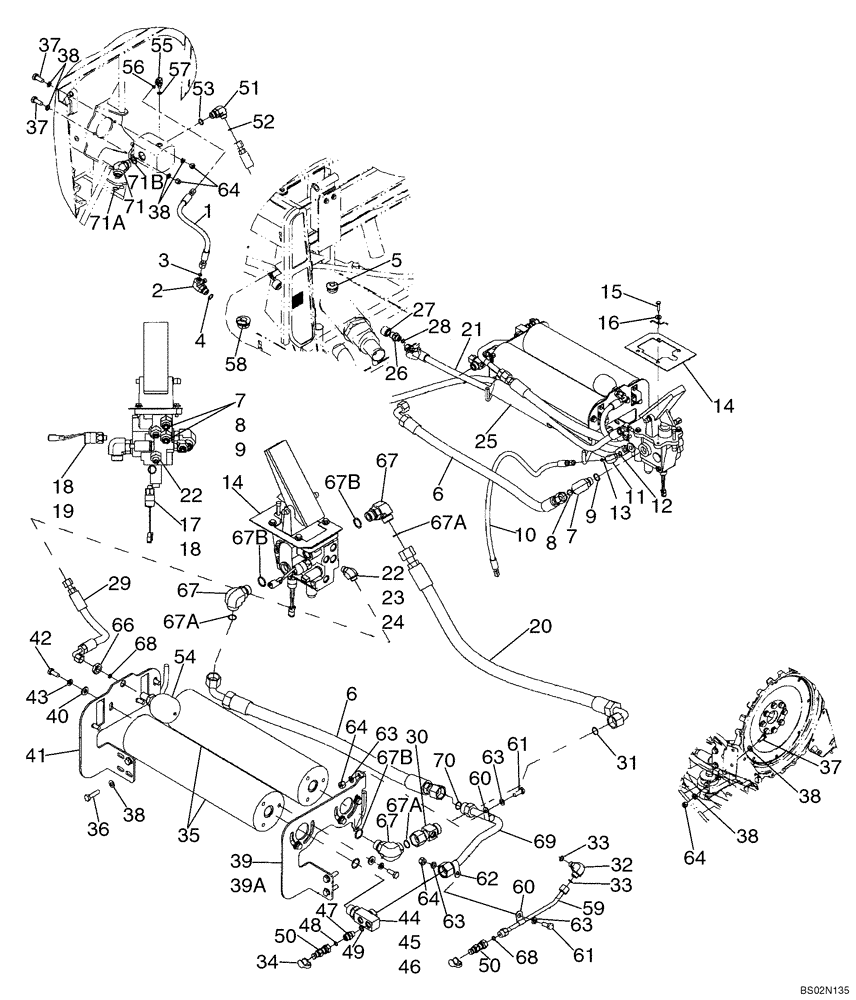

Запчасти Case 521D (07-05) - HYDRAULICS - BRAKE, MAIN - IF USED (07) - BRAKES

REF

INSTRUCTION

VALVE DRAIN TO HYDRAULIC TANK

1шт.

REF

INSTRUCTION

BRAKE VALVE AND ACCUMULATOR

1шт.

1

369881A1

HOSE ASSY.

480 mm (18-7/8 in); Drain; Used With 400337A1 Motor With M12 Drain Port On Top; If Used

1шт.

1a

87427292

HOSE ASSY.,6.35mm ID x 260mm L, SAE 100R17

260 mm (10-1/4 in); Drain; Used With 87426773 Motor With M14 Drain Port On Side; If Used

1шт.

2

372028A2

ELBOW

90 deg; Incl. 3, 4

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

6

86984594

HOSE

810 mm; Accumulator; Left Hand

1шт.

7

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 8, 9

2шт.

8

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

10

367867A4

HOSE ASSY.

915 mm (36 in); Parking Brake

1шт.

11

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

90 deg; 11/16 fc sl x M16 Orb; Incl. 12, 13

1шт.

12

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

14

8603091

VALVE

See Figure 07-04

1шт.

14a

414369A1

PLATE

Brake Valve

1шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

4шт.

17

390431A2

SWITCH

Brake Light Pressure; Replaced By 87307240

1шт.

17

87307240

PRESSURE SWITCH

Pressure; Brake Light; Incl. O-Ring; Replaces 390431A2

1шт.

17

84177015

PRESSURE SWITCH

Brake Light; Replaces 87307240 Pressure Switch Used On Some Models

1шт.

18

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

No Longer Required For Use With Brake Light Pressure Switch; Quanity Changed To (1)

1шт.

19

8501303

PRESSURE SWITCH

Brake Warning; If Used

1шт.

19

8605738

PRESSURE SWITCH

Brake Warning; If Used

1шт.

20

86984593

HOSE

970 mm lg; Accumulator; Right Hand

1шт.

21

366745A1

HOSE ASSY.

1117 mm (44 in); Brake Valve To Reservoir

1шт.

22

700-374

45 ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 23, 24

2шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

24

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

26

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 27, 28

1шт.

27

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

29

86988687

HOSE

391 mm lg; Parking Brake Accumulator

1шт.

30

372033A1

FITTING

Incl. 31

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

32

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 33, 33A

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

33a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

34

H434163

DUST CAP

3шт.

35

8604968

ACCUMULATOR

See Figure 07-06; If Used

2шт.

35

8604617

ACCUMULATOR

See Figure 07-06; If Used

2шт.

36

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

37

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

39

8603142

BRACKET

1шт.

40

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

41

8603143

BRACKET

1шт.

42

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

43

892-11010

LOCK WASHER,M10

11 x 20 x 2 mm

8шт.

44

86987640

FITTING

1-3/16 fc sl x M27 Or; Incl. 45, 46

1шт.

45

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

46

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

47

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 48, 49

1шт.

48

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

49

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

50

243670A1

COUPLING

2шт.

51

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

90 deg; 11/16 fc sl x 16 Or; Incl. 52, 53

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

53

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

54

8500209

ACCUMULATOR

Parking Brake; Component Parts Not Serviced Separately; Not Illustrated

1шт.

55

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

90 deg; 9/16 fc sl x M12 Or; Incl. 56, 57; Used With 400337A1 Motor With M12 Drain Port On Top; If Used

1шт.

56

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

57

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

58

435214A1

GROMMET

1шт.

59

86987041

TUBE,9.525 mm OD x 253, 25 mm L

Diagnostic

1шт.

60

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

9,5 mm

1шт.

61

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

62

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19.0 mm)

2шт.

63

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

64

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

65

414369A1

PLATE

Brake Valve

1шт.

66

701-909

NUT,11/16" - 16

M10

1шт.

67

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 67A, 67B

4шт.

67a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

67b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

68

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

69

86988695

TUBE,19.05 mm OD x 231.50, 163.20 mm L

231 mm; Left Accumulator

1шт.

70

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

71

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

45 deg; 3/4 OD; Incl. 71A, 71B

1шт.

71a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

71b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

72

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

90 deg; 9/16 fc sl x M14 Or; Incl. Ref 73, 74; Used With 87426773 Motor With M14 Drain Port On Side; If Used

1шт.

73

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

74

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
