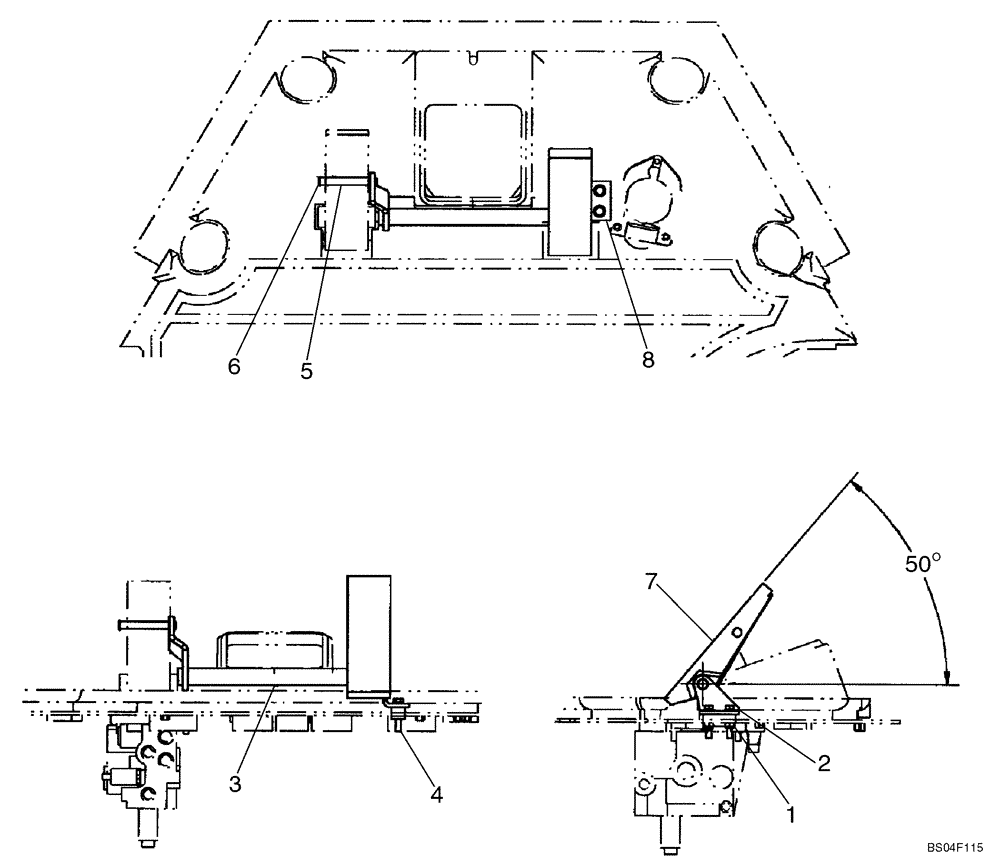

Запчасти Case 521D (07-02) - BRAKE PEDALS (07) - BRAKES

REF

INSTRUCTION

RIGHT HAND PEDAL

1шт.

1

383873A1

BLOCK

1шт.

2

8603085

BRACKET

1шт.

3

383879A2

PEDAL

Tag-Along

1шт.

4

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

2шт.

5

383868A1

PIN

1шт.

6

800-44012

SNAP RING,M12, Ext

2шт.

7

383869A2

RUBBER PEDAL PAD

Pad Pedal Cover

1шт.

8

REF

INSTRUCTION

Cut 27 x 57mm ( 1-1/16 x 2-1/4 in ) Rectangle In Floor Mat Around Block

1шт.
