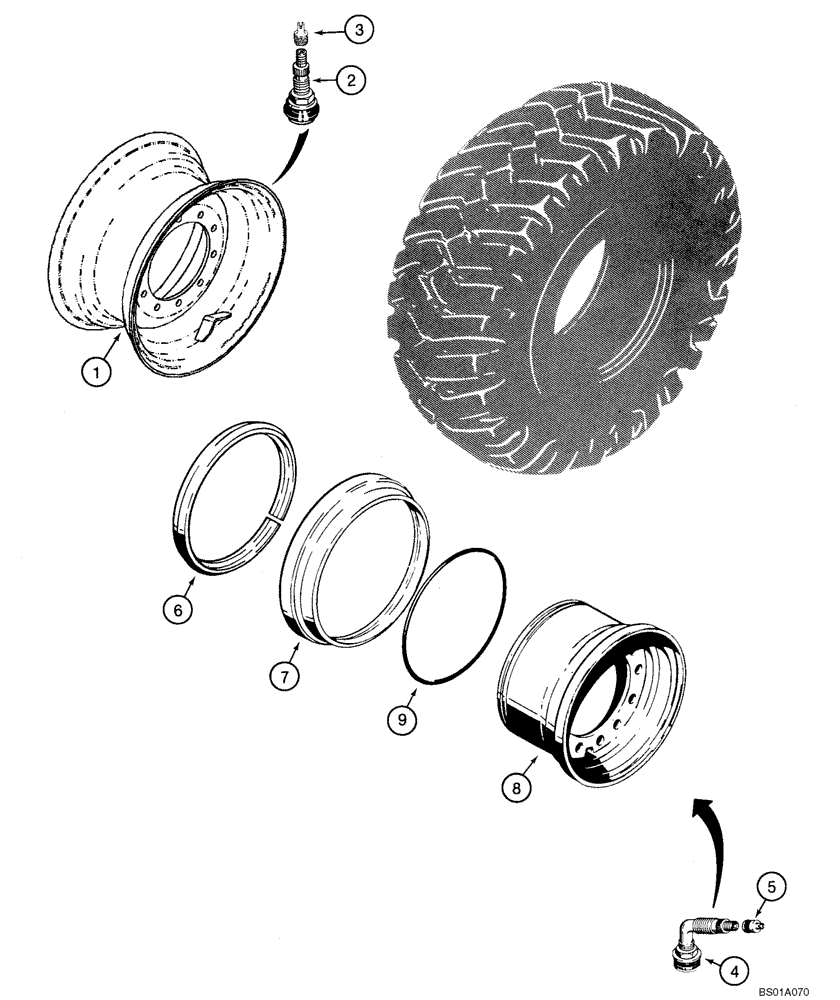

Запчасти Case 521D (06-29) - WHEELS (06) - POWER TRAIN

REF

INSTRUCTION

FOR 17.5 X 25 TIRES--ONE PIECE WHEEL

1шт.

1

86989782

WHEEL ASSY

17.5 x 25; If Used

4шт.

1

87364122

RIM

WHEEL ASSY Incl. 2; If Used

4шт.

2

A20058

VALVE STEM

Incl. 3

4шт.

REF

INSTRUCTION

FOR 17.5 X 25 TIRES - THREE PIECE WHEEL

1шт.

3

L19664

VALVE STEM

4шт.

4

A20058

VALVE STEM

4шт.

5

L19664

VALVE STEM

Incl. 5

1шт.

392841A1

WHEEL ASSY.

Incl. 6 - 8; If Used

4шт.

86989781

WHEEL ASSY

Incl. 6 - 8; If Used

4шт.

87364126

RIM

WHEEL ASSY; Incl. 4, 9; If Used

4шт.

6

A19100

LOCKING RING

Locking

1шт.

7

A19099

RING

Side

1шт.

8

NSS

NOT SOLD SEPARAT

Rim; Wheel

1шт.

9

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

4шт.
