(06-28) - DRIVE SHAFT - CENTER AND REAR

Запчасти Case 521D (06-28) - DRIVE SHAFT - CENTER AND REAR (06) - POWER TRAIN

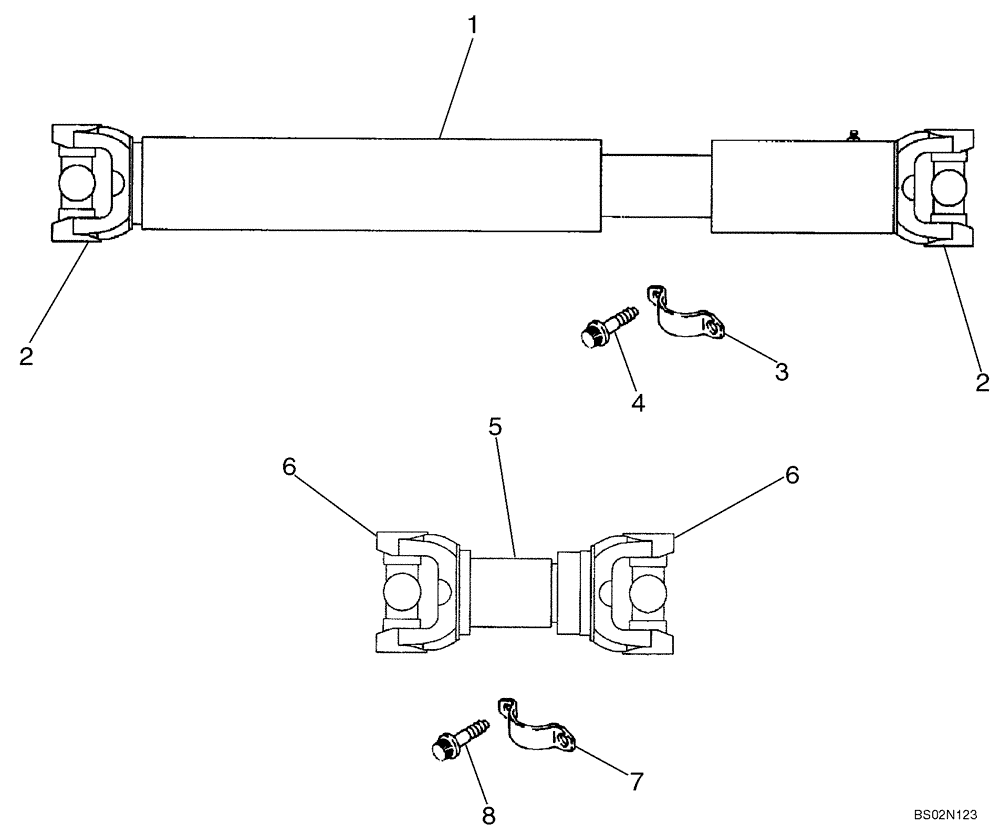

Схема запчастей Case 521D - (06-28) - DRIVE SHAFT - CENTER AND REAR (06) - POWER TRAIN
7
3
5
8
2
1
2
6
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CENTER DRIVE SHAFT

1шт.

86990309

DRIVE SHAFT

Incl. 2

1шт.

2

8604433

BEARING ASSY

2шт.

3

L116943

SECURING STRAP

Bearing

4шт.

87539949

KIT

KIT For Service Order In Place Of L116943

1шт.

4

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing Strap; Use 19-6247

8шт.

4

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

Bearing Strap

8шт.

REF

INSTRUCTION

REAR DRIVE SHAFT

1шт.

5

86990308

DRIVE SHAFT

Incl. 6

1шт.

6

8604433

BEARING ASSY

2шт.

7

L116943

SECURING STRAP

Bearing

4шт.

87539949

KIT

KIT For Service Order In Place Of L116943

1шт.

8

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

Bearing Strap

8шт.
