Запчасти Case 521D (06-27) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (06) - POWER TRAIN

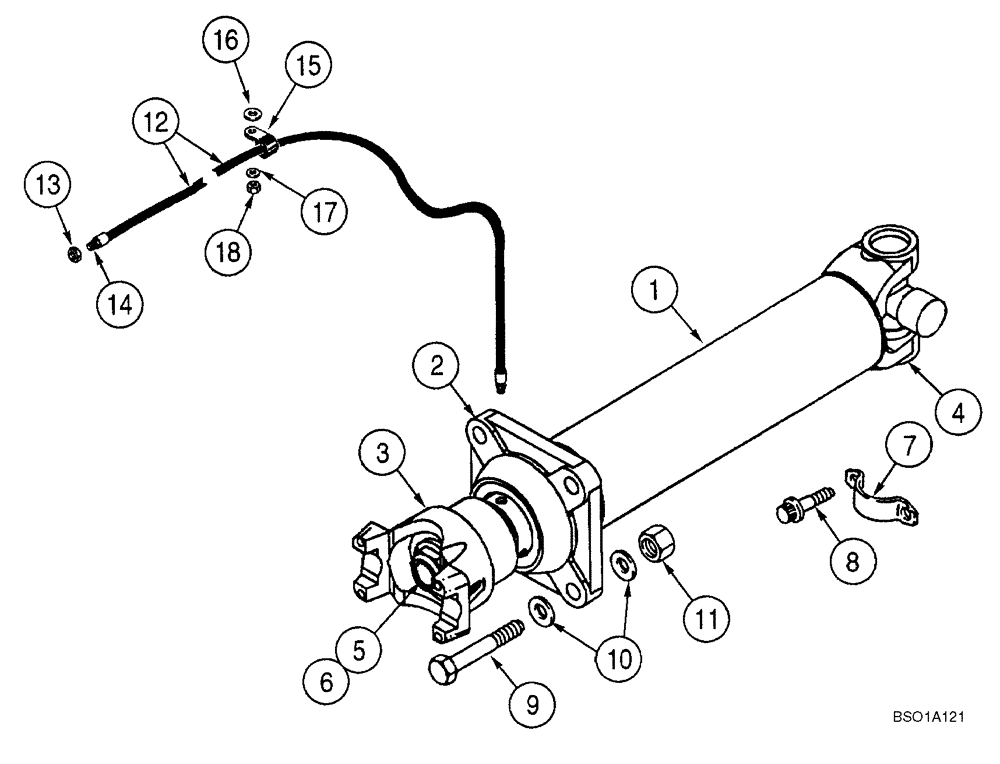

Схема запчастей Case 521D - (06-27) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (06) - POWER TRAIN
2
6
18
13
3
14
16
7
1
17
9
8
11
5
4
15
12
10

Артикул

Название

Примечание

Количество

1

86990310

DRIVE SHAFT

Front; Incl. 2 - 6

1шт.

1

87314315

DRIVE SHAFT

SHAFT, DRIVE Front; Incl 3-6 Plus Bearing 87314314 With Set Screw To Allow Bearing To Slide Freely On Driveshaft; Not Illustrated; If Used

1шт.

2

8604398

BEARING CARRIER

Carrier

1шт.

87314314

BEARING CARRIER,49.213 mm ID x 60.6 mm

Carrier; Used with 87314315 Shaft; Not Illustrated; If Used

1шт.

3

8604673

YOKE

Drive Shaft To Center Bearing

1шт.

4

8604433

BEARING ASSY

1шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

6

8604270

LOCK NUT

Nut

1шт.

7

L116943

SECURING STRAP

Bearing

2шт.

87539949

KIT

KIT For Service Order In Place Of L116943

1шт.

8

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

12шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

12

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. 13, 13A

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

14

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

15

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

Выбрано товаров: 22
