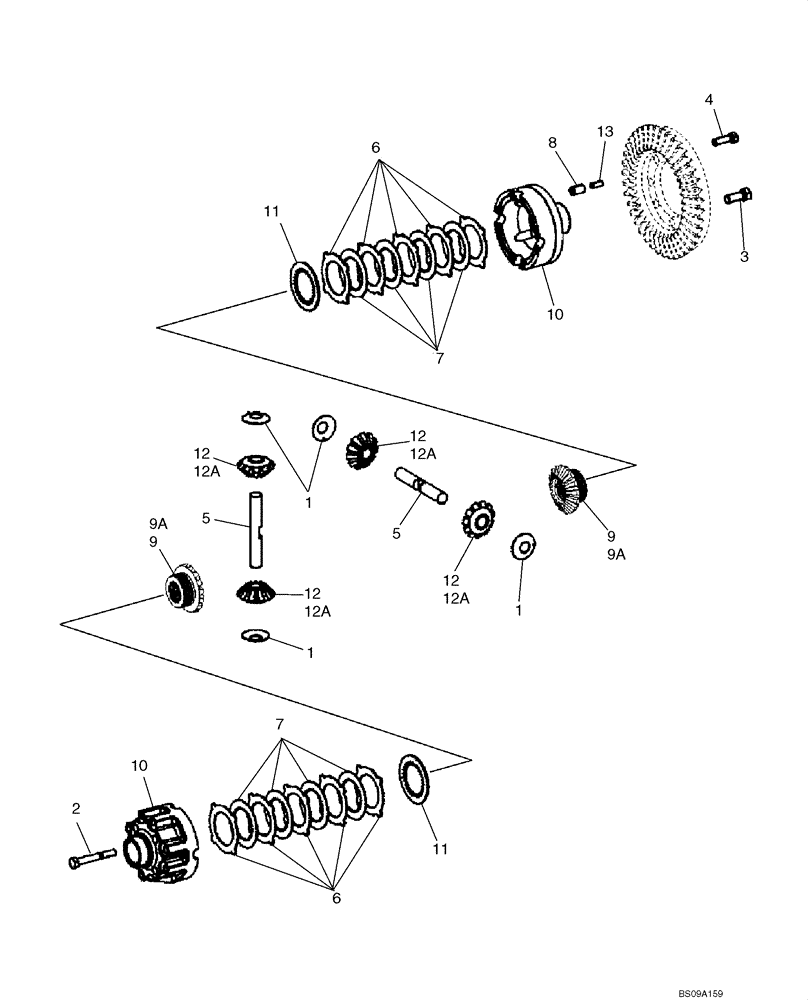

Запчасти Case 521D (06-24C) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

86984431

REAR AXLE

Limited Slip; Inc. Figure(s) 06-24A - 06-24E

1шт.

87358578

REAR AXLE

Limited Slip; Inc. Figure(s) 06-24A - 06-24E; Same As 86984431 Except Wheel End Assembly

1шт.

8605358

DIFFERENTIAL ASSY

Inc. 1 - 13

1шт.

84144141

DIFFERENTIAL ASSY

Inc. 1 - 8,9A,10,11,12A,13; Replaces 8605358, 87440807

1шт.

1

8603718

THRUST WASHER

4шт.

2

8603724

SCREW

4шт.

3

8603720

BOLT

M12 x 1,5 x 95

4шт.

4

8603721

BOLT,Hex, M16 x 1.5 x 40mm, Full Thd

M16 x 1,5 x 100

8шт.

5

8603719

SHAFT

2шт.

6

8603713

PLATE

1,4 mm; Separator; If Used

10шт.

7

8603714

PLATE

Friction

8шт.

8

8603722

PIN

16 x 40

4шт.

9

8603716

GEAR

2шт.

9a

84144323

GEAR

2шт.

10

8605359

HOUSING

1шт.

11

8603715

PRESSURE RING

3,0 mm; Pressure

2шт.

12

8603717

GEAR

4шт.

12a

84144326

GEAR

4шт.

13

8603723

PIN

10 x 40

4шт.

14

8605631

CLUTCH PLATE

1,9 mm; Outer (Not Shown)

1шт.

14

8605632

CLUTCH PLATE

2,0 mm; Outer (Not Shown)

1шт.

14

8605633

CLUTCH PLATE

1,8 mm; Outer (Not Shown)

1шт.

15

8605634

WASHER

(Not Shown)

8шт.
