Запчасти Case 521D (06-24) - AXLE, REAR - MOUNTING (06) - POWER TRAIN

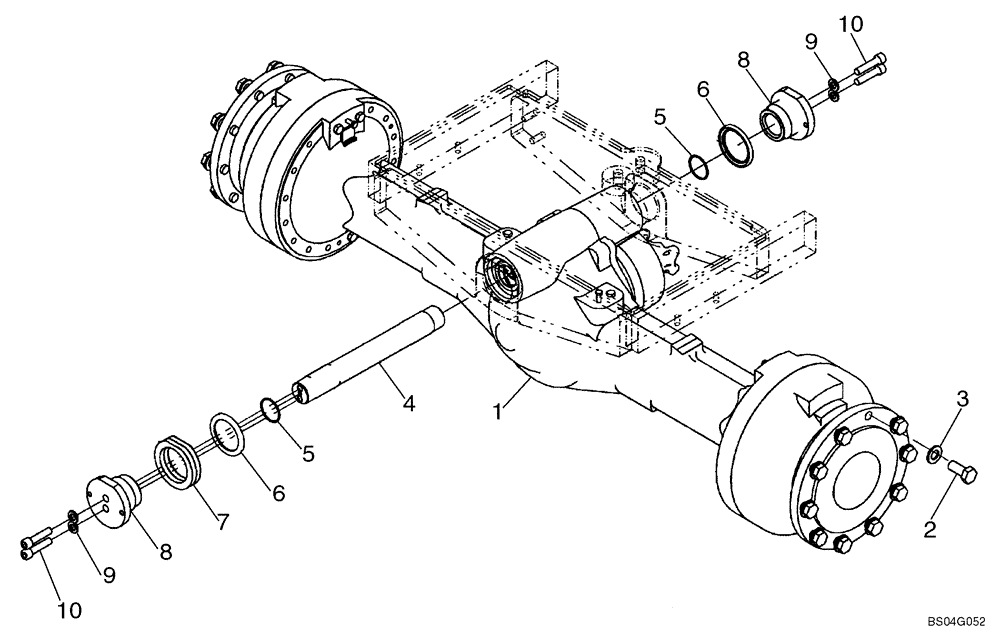

Схема запчастей Case 521D - (06-24) - AXLE, REAR - MOUNTING (06) - POWER TRAIN
10
9
7
5
8
6
9
2
6
4
1
5
8
3
10

Артикул

Название

Примечание

Количество

1

86984431

REAR AXLE

Limited Slip; Incl. Figure(s) 06-24A - 06-24E

1шт.

1

87358578

REAR AXLE

Limited Slip; Incl. Figure(s) 06-24A - 06-24E; Same As 86984431 Except Wheel End Assembly

1шт.

2

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

20шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

4

87695939

PIN,55.95mm OD x 463mm L

Rear Axle; Replaces 87450043, 380237A2

1шт.

5

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

6

87715378

OIL SEAL,82.55mm ID x 108.1mm OD x 19.43mm Thk

Replaces A57658, 76084289 Seals

2шт.

7

368140A1

SHIM,93.5mm ID x 128mm OD x 0.5mm Thk

1шт.

7

368141A1

SHIM,93.5mm ID x 128mm OD x 1mm Thk

1шт.

7

368142A1

SHIM,93.5mm ID x 128mm OD x 1.5mm Thk

1шт.

8

87731988

PIVOT

End; Replaces 86991231

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

10

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

4шт.

Выбрано товаров: 13
