Запчасти Case 521D (06-23C) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN

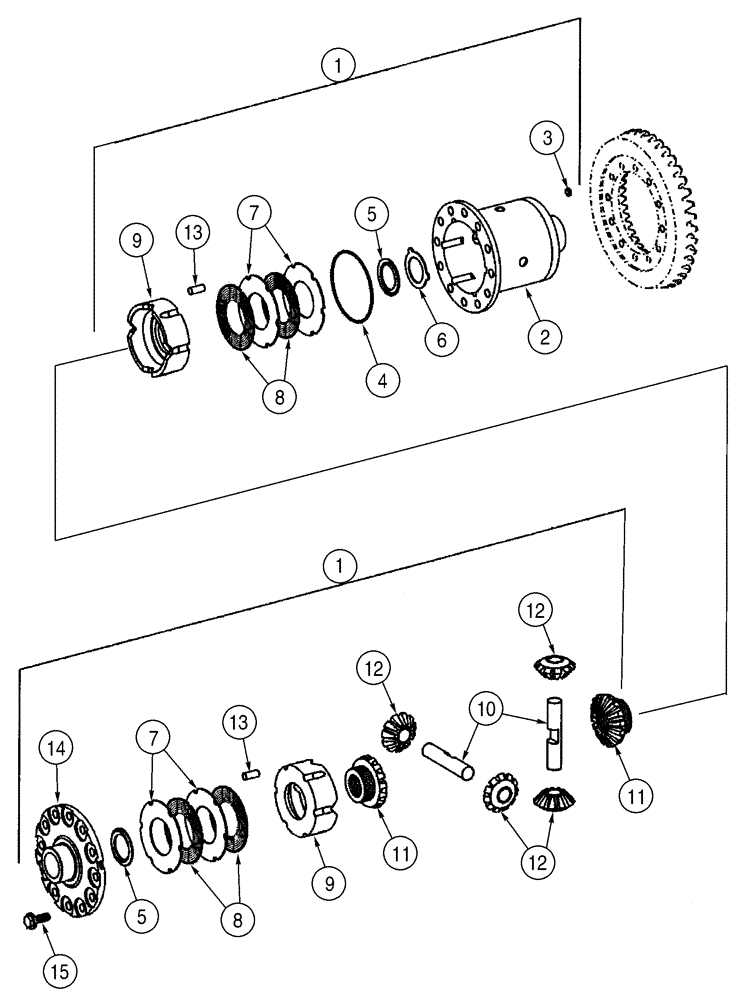

Схема запчастей Case 521D - (06-23C) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN
8
5
2
7
3
15
10
11
11
12
1
14
9
8
13
9
5
6
13
12
1
12
7
4

Артикул

Название

Примечание

Количество

87430404

FRONT AXLE

Limited Slip; Incl. 1 - 15; Incl. Figure(s) 06-23A - 06-23E

1шт.

87313909

FRONT AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E; Oil Filled; Replaces 87430404; Compnents Same As 87430404

1шт.

87358576

FRONT AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E; Same As 87313909 Except Wheel End Assembly Changes

1шт.

87430407

CARRIER ASSY.

Limited Slip; Incl. 2 - 15; Same Components As 8603686

1шт.

1

8603546

AXLE DIFFERENTIAL

Incl. 2 - 15

1шт.

2

8603545

HOUSING

1шт.

3

8603271

SEAL

6шт.

4

8603250

SNAP RING

1шт.

5

8603251

THRUST WASHER

2шт.

6

8603282

THRUST WASHER

1шт.

7

8603547

CLUTCH PLATE

CLUTCH DISK CLUTCH, PLATE, 2,1 mm; Outer

1шт.

7

8603277

CLUTCH PLATE

2,2 mm; Clutch Separator Plate

1шт.

7

8603278

CLUTCH PLATE,Steel

2,3 mm; Clutch Separator Plate

1шт.

7

8603279

CLUTCH PLATE

2,4 mm; Clutch Separator Plate

1шт.

7

8603280

CLUTCH PLATE

2,5 mm; Clutch Separator Plate

1шт.

8

8603272

DISC

4шт.

9

8603252

SNAP RING

2шт.

10

8603253

SHAFT

2шт.

11

8603267

GEAR

16T

2шт.

12

8603254

PINION

11T

4шт.

13

8603255

PIN

12шт.

14

8603548

COVER

1шт.

15

8603268

BOLT,Lock

12шт.

Выбрано товаров: 23
