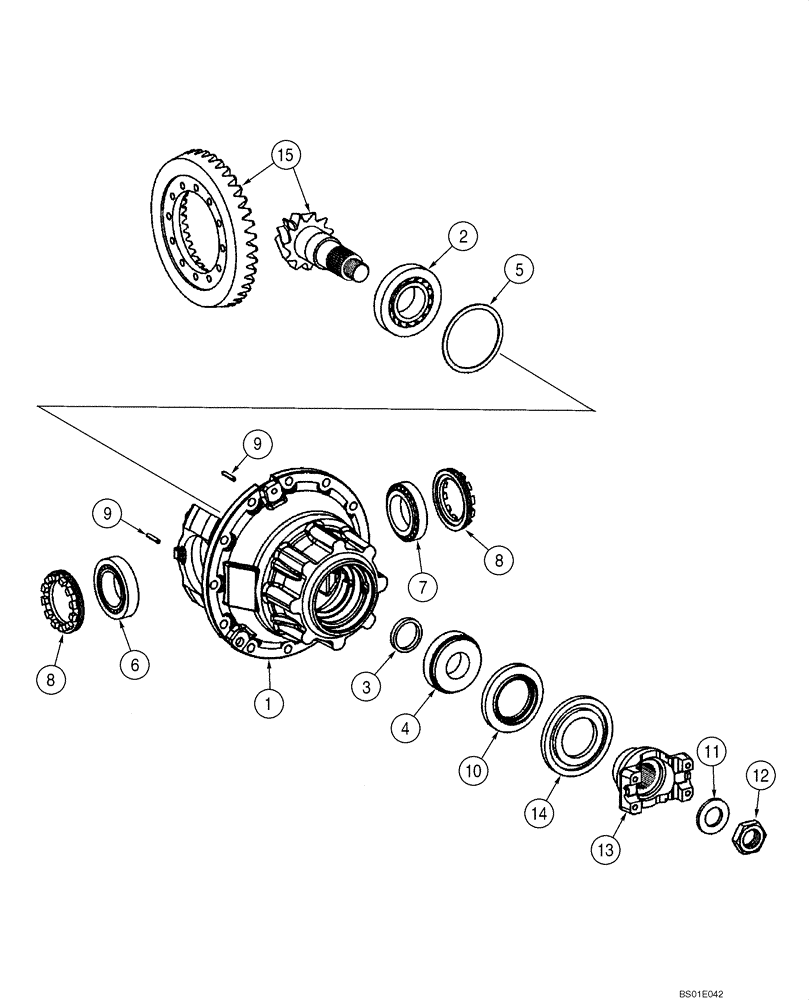

Запчасти Case 521D (06-23B) - AXLE, FRONT - DIFFERENTIAL CARRIER (06) - POWER TRAIN

87430404

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-23A - 06-23E

1шт.

87313909

FRONT AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E; Oil Filled; Replaces 87430404; Compnents Same As 87430404

1шт.

87358576

FRONT AXLE

Limited Slip; See Figure(s) 06-23A - 06-23E; Same As 87313909 Except Wheel End Assembly Changes

1шт.

87430407

CARRIER ASSY.

Limited Slip; Incl. 1 - 15; Incl. Figure 06-23C

1шт.

1

8603543

HOUSING

1шт.

2

8603257

ROLLER BEARING,60mm ID x 130mm OD x 33.5mm W

1шт.

3

8603239

SPACER,8.80 mm

1шт.

3

8603789

SPACER,8.70 mm

1шт.

3

8603794

SPACER,8.60mm

1шт.

3

8603793

SPACER,8.50 mm

1шт.

3

8603792

SPACER,8.40 mm

1шт.

3

8603791

SPACER,8.30 mm

1шт.

3

8603240

SPACER,8.90 mm

1шт.

3

8603241

SPACER,9.10 mm

1шт.

3

8603242

WASHER,9.20 mm

1шт.

3

8603243

SPACER,9.30 mm

1шт.

3

8603244

SPACER,9.40 mm

1шт.

4

8603257

ROLLER BEARING,60mm ID x 130mm OD x 33.5mm W

1шт.

5

8603259

SHIM,0.7mm Thk

1шт.

5

8603260

SHIM,0.8mm Thk

1шт.

5

8603261

SHIM,0.9mm Thk

1шт.

5

8603262

SHIM,1.0mm Thk

1шт.

5

8603291

SHIM,1.2mm Thk

1шт.

5

8603290

SHIM,1.3mm Thk

1шт.

5

8603289

SHIM,1.4mm Thk

1шт.

5

8603288

SHIM,1.5mm Thk

1шт.

5

8603287

SHIM,1.6mm Thk

1шт.

5

8603286

SHIM,1.7mm Thk

1шт.

5

8603285

SHIM,1.8mm Thk

1шт.

5

8603284

SHIM,1.9mm Thk

1шт.

5

8603283

SHIM,2.0mm Thk

1шт.

5

8603264

SHIM,1.1mm Thk

1шт.

6

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

1шт.

7

8603263

ROLLER BEARING

1шт.

8

8603265

NUT

2шт.

9

8603795

ROLL PIN,6mm OD x 36mm L, Slotted

6 x 36

2шт.

10

8603247

SEAL,75mm ID x 125mm OD

1шт.

11

8603682

WASHER

If Used

1шт.

12

8605616

NUT

1шт.

13

87430409

FLANGE

1шт.

14

8603685

COVER

1шт.

15

87430408

SET OF PARTS

Bevel Gear

1шт.
