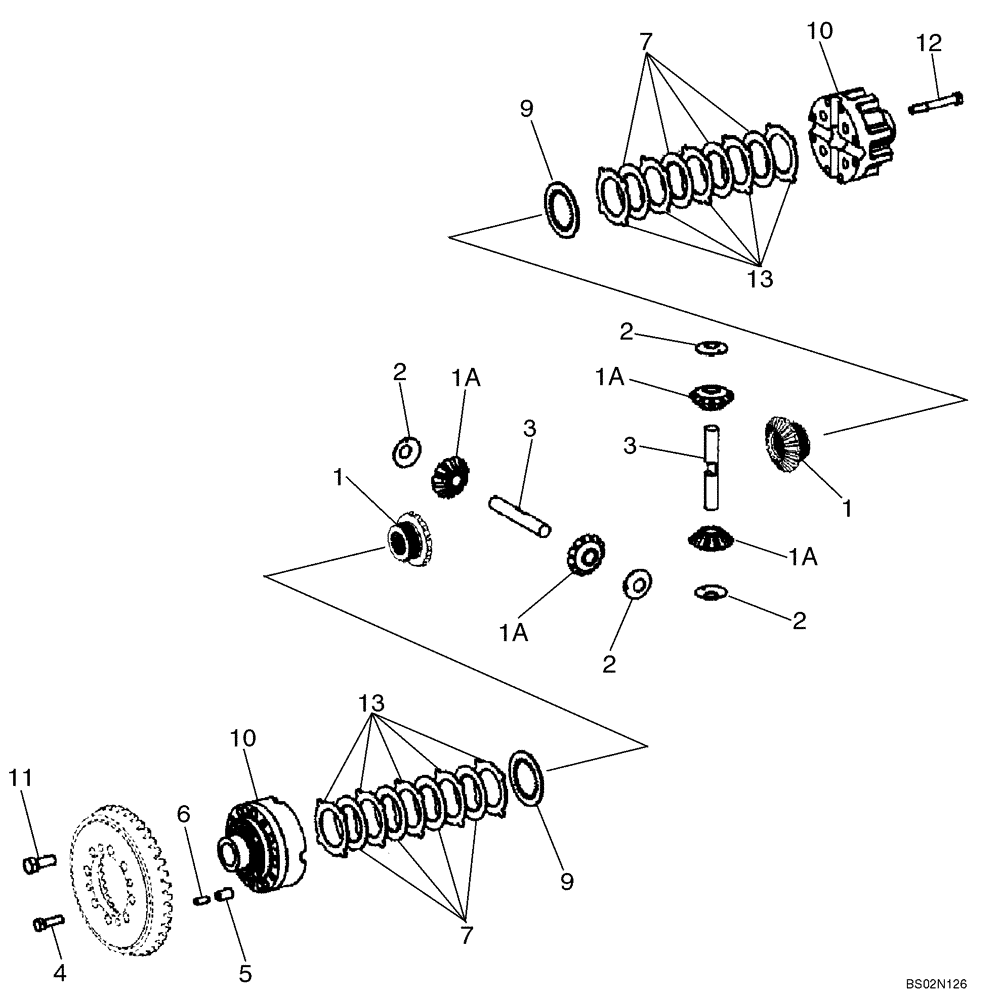

Запчасти Case 521D (06-22C) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN

86984432

FRONT AXLE

Limited Slip; Incl. 1 - 15; Incl. Figure(s) 06-22A - 06-22E

1шт.

8603546

AXLE DIFFERENTIAL

Limited Slip; Incl. 2 - 15

1шт.

87440807

DIFFERENTIAL ASSY

Same Components As 8603546

1шт.

1

8603716

GEAR

2шт.

1a

8603717

GEAR

4шт.

2

8603718

THRUST WASHER

4шт.

3

8603719

SHAFT

2шт.

4

8603724

SCREW

4шт.

5

8603722

PIN

16 x 40

4шт.

6

8603723

PIN

10 x 40

4шт.

7

8603714

PLATE

Inner

8шт.

9

8603715

PRESSURE RING

2шт.

10

8605359

HOUSING

1шт.

11

8603721

BOLT,Hex, M16 x 1.5 x 40mm, Full Thd

M16 x 100

8шт.

12

8603720

BOLT

M12 x 95

8шт.

13

8605633

CLUTCH PLATE

1,8 mm; Outer

1шт.

13

8605631

CLUTCH PLATE

1,9 mm; Outer

1шт.

13

8605632

CLUTCH PLATE

2,0 mm; Outer

1шт.

13

8603547

CLUTCH PLATE

CLUTCH DISK CLUTCH, PLATE, 2,1 mm; Outer

1шт.

14

8605634

WASHER

Not Illustrated, Serial Range: -8603546

8шт.
