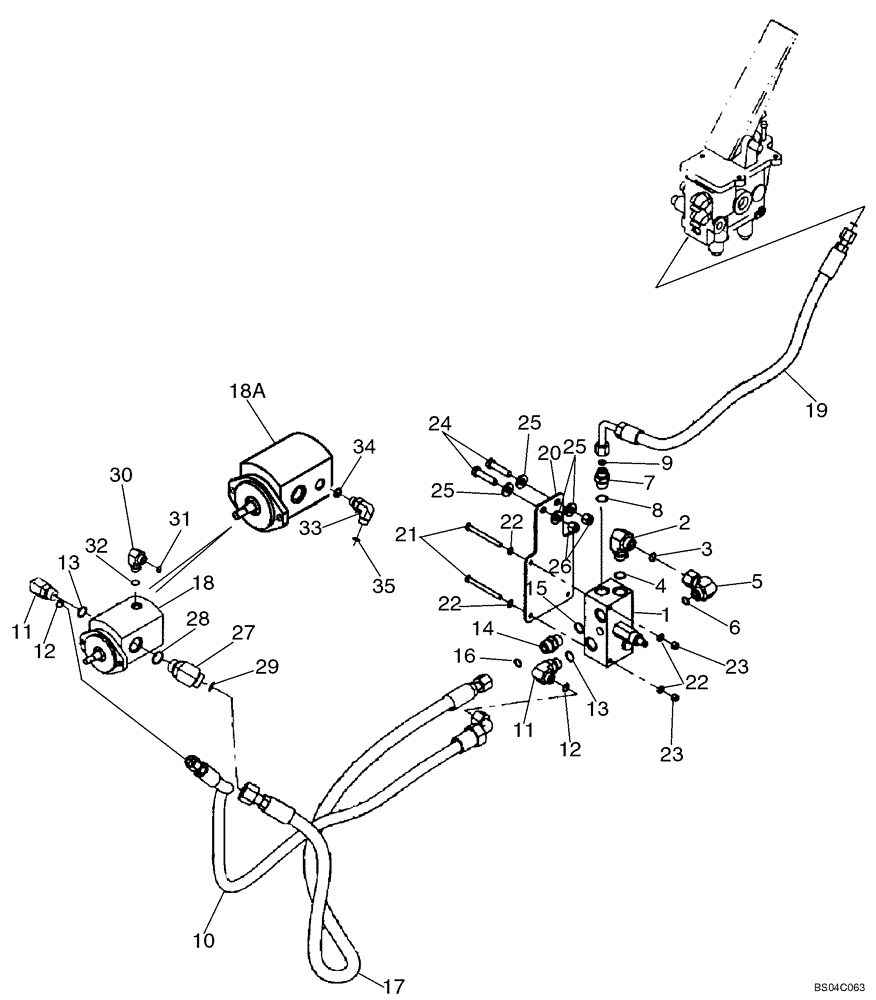

Запчасти Case 521D (02-07) - COOLING SYSTEM - MOTOR, DRIVE (STANDARD FAN DRIVE) (02) - ENGINE

1

8605141

VALVE, PRESSURE RELI

EF See Figure 02-10; Replaces 429361A2 Valve Used In Production

1шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 3, 4

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

4

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 6

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

7

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 8, 9

2шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

10

440832A1

HOSE ASSY.

2249 mm; Forward

1шт.

11

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 12, 13

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

13

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

14

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 15, 16

1шт.

15

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

17

376179A2

HOSE ASSY.

1935 mm; Reverse

1шт.

18

400337A1

MOTOR, HYDRAULIC

Fan Drive; Includes 8604978 Seal Kit, 8604520 Shaft Seal; M12 Drain Port On Top; No Longer Available, Order 87426773 Motor (Ref 18A), 700-378 Elbow (Ref 33), and 87427292 Hose On Figure 07-05

1шт.

18a

87426773

HYDRAULIC MOTOR,GEAR, 14 CC

Fan Drive; Includes 87426795 Seal Kit; M14 Drain Port On Side

1шт.

18a

87426773R

REMAN-HYD MOTOR

1шт.

18a

87426773C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

19

408003A3

HOSE ASSY.

809 mm; Valve Supply

1шт.

20

407750A1

BRACKET

1шт.

21

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

24

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

25

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

27

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 28, 29

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16 x 1/16; Face Seal

1шт.

29

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

30

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

90 deg; 9/16 fc sl x M12 Or; Incl. 31, 32; Used With 400337A1 Motor (Ref 18); If Used

1шт.

31

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

32

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

33

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

90 deg; 9/16 fc sl x M12 Or; Incl. 34, 35; Used With 87426773 Motor (Ref 18A); If Used

1шт.

34

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

35

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.
