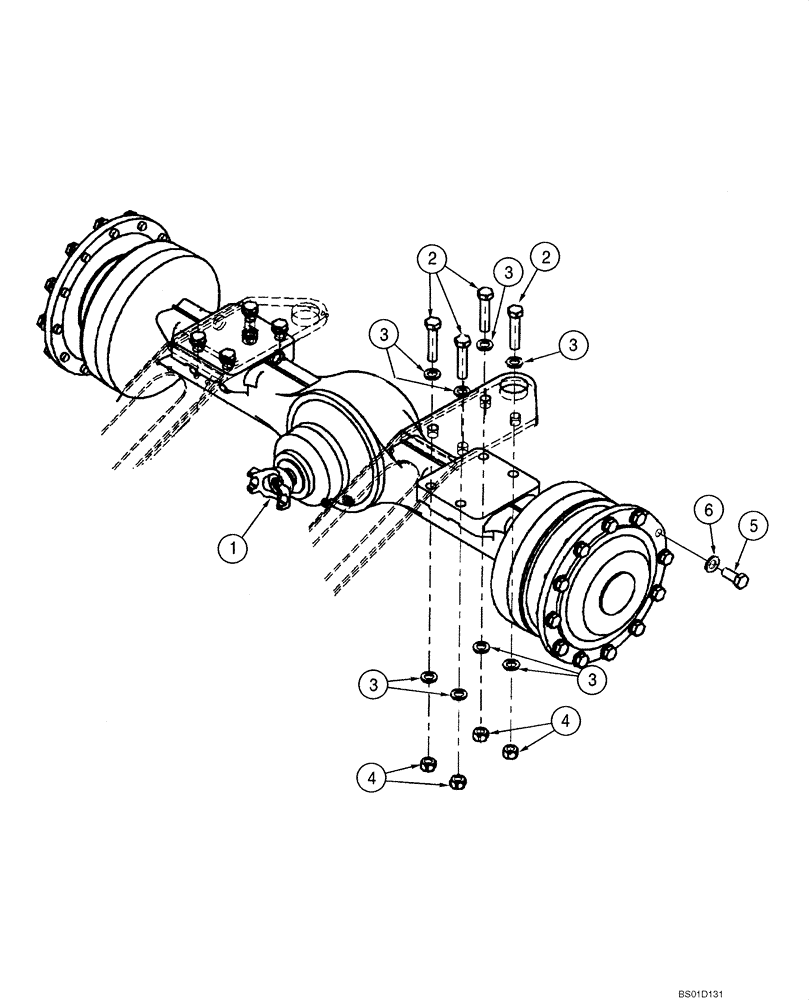

Запчасти Case 521D (06-22) - AXLE, FRONT - MOUNTING (06) - POWER TRAIN

1

86984432

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 06-22E

1шт.

2

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

860

8шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

16шт.

4

829-1424

NUT,M24, Cl 10

8шт.

5

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

20шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

8603201

BREATHER

Not Illustrated

1шт.
