Запчасти Case 521D (06-21A) - TRANSMISSION - COVER (06) - POWER TRAIN

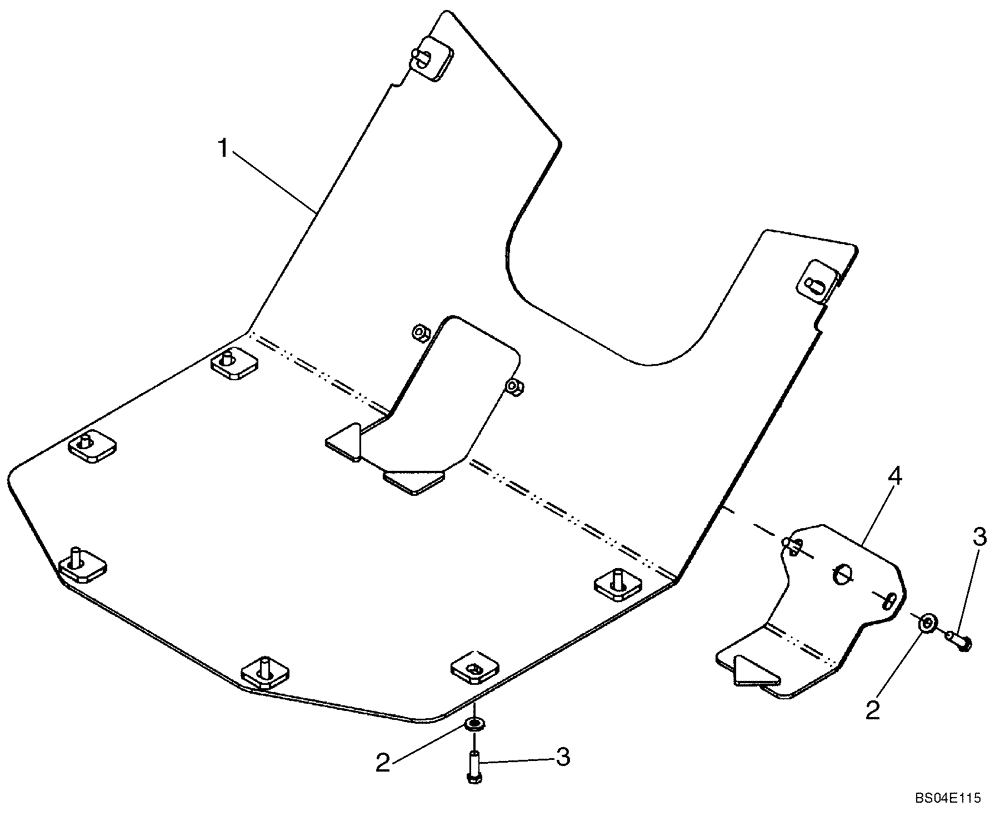

Схема запчастей Case 521D - (06-21A) - TRANSMISSION - COVER (06) - POWER TRAIN
2
2
1
4
3
3

Артикул

Название

Примечание

Количество

1

87430132

COVER ASSY

Transmission

1шт.

1

87366870

COVER ASSY

Transmission; Without 9.5mm Spacer Blocks At Bolt Holes

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

10шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

4

87430595

COVER PLATE

Transmission Drain; Angle 135 degt; Length Lower Leg 85mm; Overall Length 256mm

1шт.

4

87367012

COVER PLATE

PLATE, COVER Transmission Drain; Angle 130 degt; Length Lower Leg 92mm; Overall Length 253mm

1шт.

Выбрано товаров: 6
