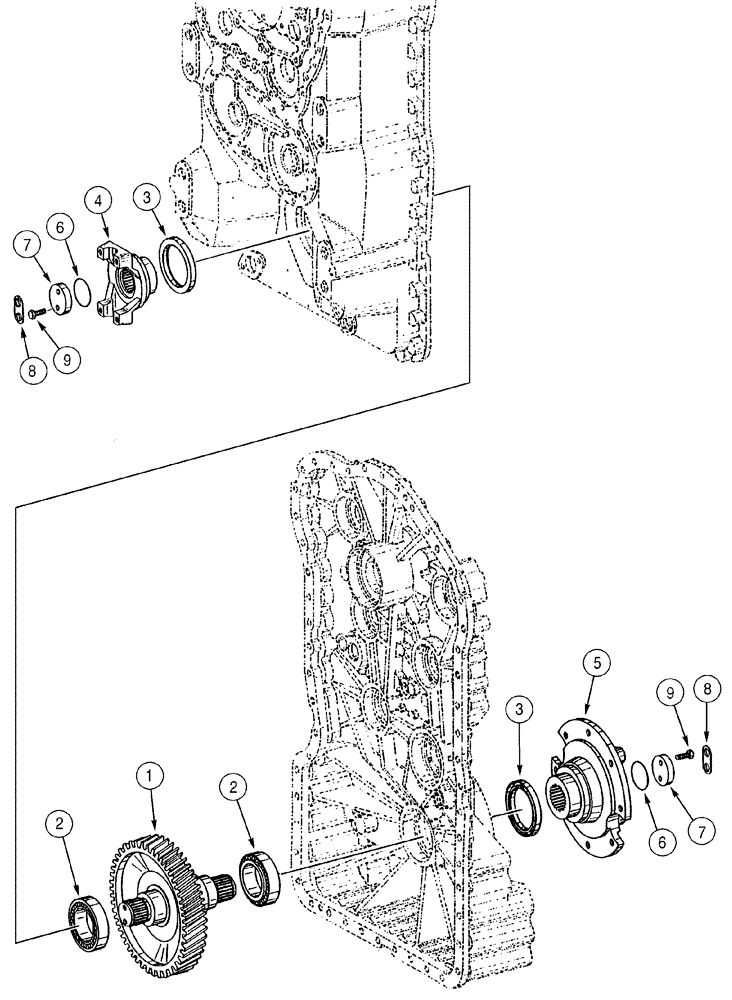

Запчасти Case 521D (06-14) - TRANSMISSION - SHAFT, OUTPUT (06) - POWER TRAIN

361424A1

TRANSMISSION

Incl. Figure(s) 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

8603324

GEAR

1шт.

2

8603301

ROLLER BEARING,60mm ID x 95mm OD x 27mm W

2шт.

3

8603223

SEAL

2шт.

4

8603648

YOKE

Output; Rear

1шт.

5

8603651

YOKE

Output Flange; For Parking Brake Assembly, See Figure 07-01

1шт.

6

8603219

O-RING,4mm Thk x 38mm ID

2шт.

7

8603220

WASHER

2шт.

8

8603221

WASHER

2шт.

9

8603325

BOLT,Hex, M8 x 25mm

8 x 25

4шт.
