Запчасти Case 521D (06-04) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT (06) - POWER TRAIN

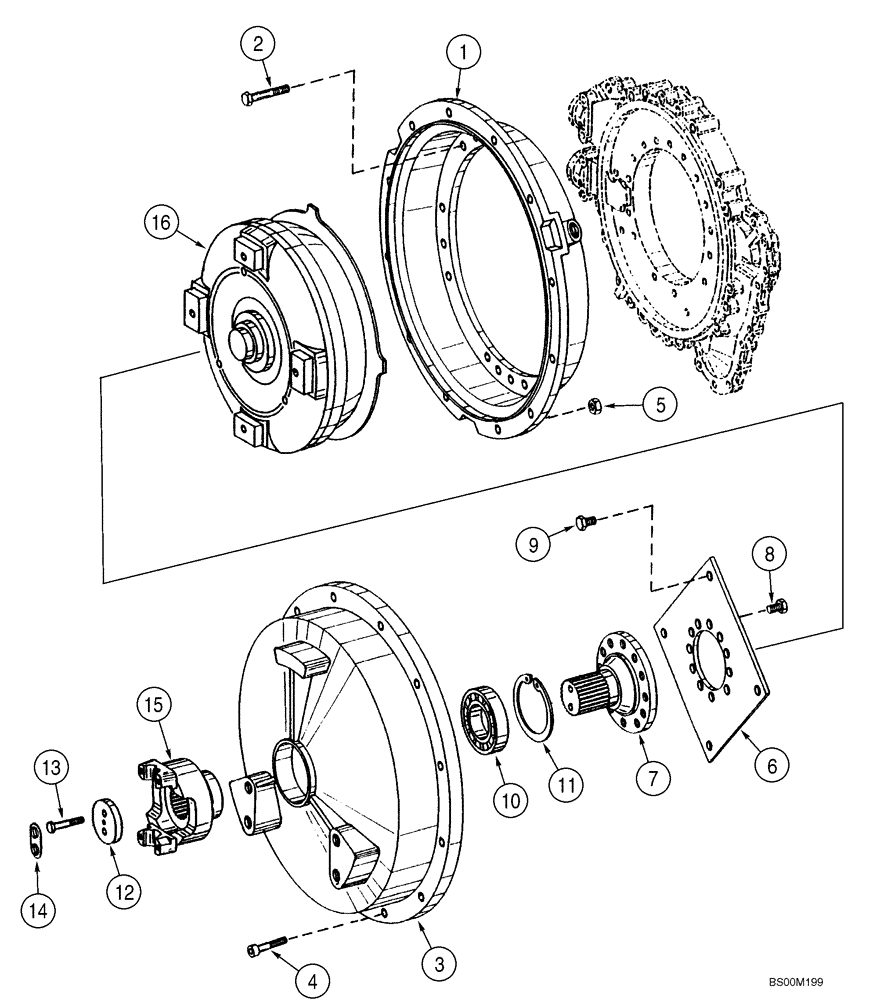

Схема запчастей Case 521D - (06-04) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT (06) - POWER TRAIN
13
16
4
11
3
14
10
8
2
7
9
15
6
12
1
5

Артикул

Название

Примечание

Количество

361424A1

TRANSMISSION

See Figure(s) 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

8603292

BELL HOUSING

1шт.

2

8603293

SCREW,Hex, M10 x 65mm

M10 x 65

18шт.

3

8604676

COVER

Replaces 8603632

1шт.

4

8603466

SCREW,M10 x 50mm

M10 x 40

12шт.

5

829-1510

NUT,M10, Cl 10

12шт.

6

8603633

DIAPHRAGM

1шт.

7

8604677

HUB

Replaces 8603663; Prior To S/N 1317765

1шт.

7

87712322

SHAFT

S/N 1317765 And After

1шт.

8

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

12шт.

9

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

4шт.

10

8603634

BALL BEARING

If Used

1шт.

10

8604678

BALL BEARING

If Used

1шт.

11

800-2190

SNAP RING,M90, Int

1шт.

12

8603635

WASHER

1шт.

13

8603405

BOLT,Hex, M8 x 50mm

M8 X 50

2шт.

14

8603636

WASHER

1шт.

15

8603637

YOKE

1шт.

84154709

SERVICE KIT

Torque Converter; Incl. 84141993 Converter and (8) 1493305 Washers

1шт.

84141993R

REMAN-TORQUE CONVERT

Reman for New PN 84154709

1шт.

84141993C

CORE-TORQUE CONVERTR

Return Number

1шт.

16

8603638

CONVERTER

Torque; Prior To S/N 1317765; No Longer Available, Order Torque Converter Kit 84154709

1шт.

16

84141993R

REMAN-TORQUE CONVERT

Reman for New PN 8603638

1шт.

16

84141993C

CORE-TORQUE CONVERTR

Return Number

1шт.

16

84141993

TORQUE CONVERTER

Torque; S/N 1317765 And After

1шт.

16

84141993R

REMAN-TORQUE CONVERT

ER Torque Converter - S/N 1317765 and After; For

1шт.

16

84141993C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number, S/N 1317765 And After

1шт.

87410351

SNAP RING

RING, V RETAINING ZF# 0630 532 157 ; Not Illustrated

1шт.

8604229

RING

SCREEN, INPUT SHAFT BRGZF# 4657 330 042; Not Illustrated

1шт.

Выбрано товаров: 31
