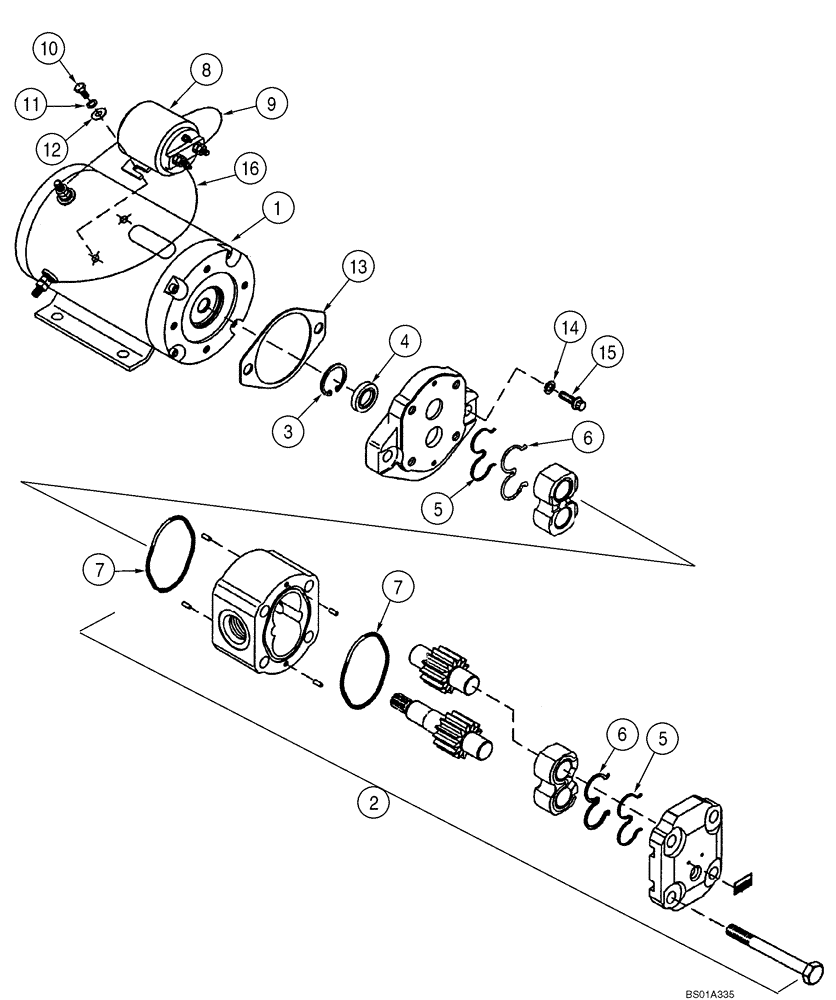

Запчасти Case 521D (05-09) - PUMP - STEERING, AUXILIARY (05) - STEERING

87581480

ELECTRIC PUMP

STEERING; Replaces 380013A1; Incl. 1 - 16

1шт.

1

87581481

ELECTRIC MOTOR

DC; Replaces 408834A1

1шт.

2

8605158

PUMP, HYDRAULIC

Replaces 408835A1

1шт.

8605162

SEAL KIT

Replaces 408838A1; Incl. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

6

NSS

NOT SOLD SEPARAT

Seal

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

8605159

KIT

Replaces 408836A1; Incl. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

Switch

1шт.

9

NSS

NOT SOLD SEPARAT

Cable

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

2шт.

11

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

12

NSS

NOT SOLD SEPARAT

Washer

2шт.

8605160

KIT

Mounting; Replaces 408837A1; Incl. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

15

NSS

NOT SOLD SEPARAT

Screw

2шт.

16

8605161

WIRE

Primary; Replaces 409033A1

1шт.
