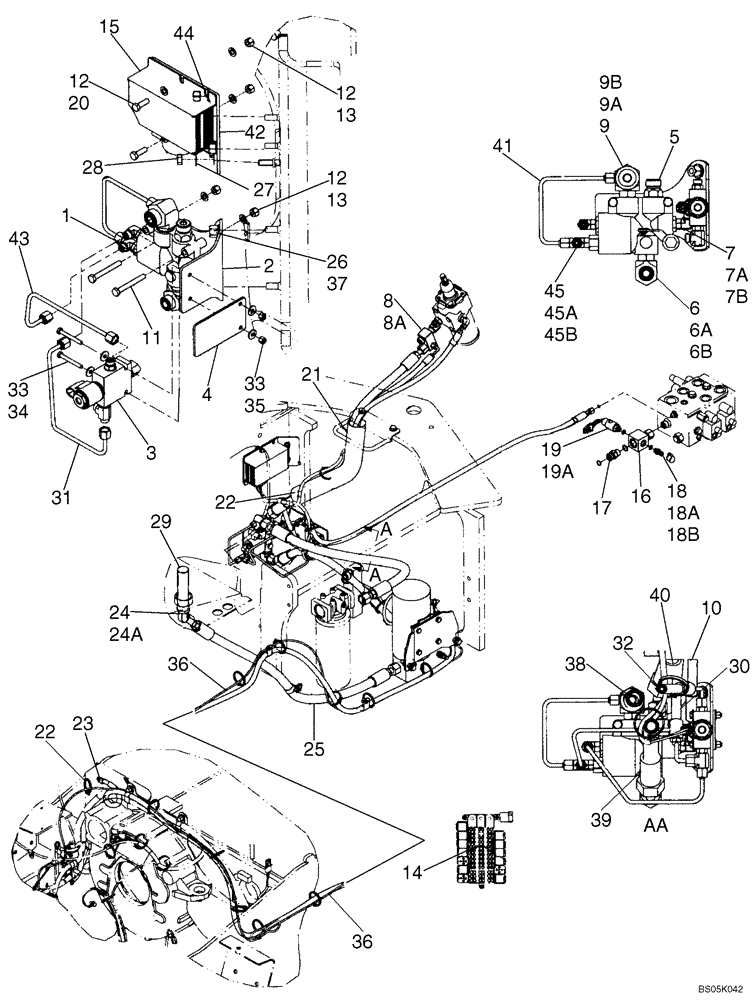

Запчасти Case 521D (05-07B) - HYDRAULICS - STEERING, AUXILIARY - IF USED (05) - STEERING

REF

INSTRUCTION

NEW VALVE, BRACKETS AND SUCTION HOSE, PLUS HARDWARE

1шт.

1

87371432

HYDRAULIC VALVE

Priority

1шт.

2

87367465

BRACKET

BRACKET Valve Mounting

1шт.

3

445471A1

VALVE

Auxiliary Steering Solenoid

1шт.

4

87403158

SHIELD

Solenoid Valve

1шт.

5

392354A1

VALVE, CHECK

Incl. 10, 11

1шт.

6

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 6A, 6B

1шт.

6a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 7A, 7B

2шт.

7a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

376636A1

FITTING

Incl. 8A

1шт.

8a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

9

376794A1

FITTING

Incl. 9A, 9B

1шт.

9a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

86983327

HOSE

1096 mm ( 43-3/16 in ); Pressure Switch

1шт.

11

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

14

A149799

FUSE

7.5 Amp; Brown

1шт.

15

8603171

MODULE

Secondary Steering

1шт.

16

400242A1

FITTING

Aux Steering Switch

1шт.

17

376970A1

VALVE, CHECK

Incl. 22A, 22B

1шт.

18

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. 18A, 18B

1шт.

18a

143349A1

DUST CAP

1шт.

18b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

398888A1

PRESSURE SWITCH

Aux Pressure; Incl. 19A

1шт.

19a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

23

87440314

WIRE HARNESS

CABLE Block To Auxiliary Steering

1шт.

24

433530A1

ELBOW

45 deg, 20mm ORFS; Incl.24A

1шт.

24a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

25

87367245

HOSE ASSY.

Aux Steering Suction; 1065mm ( 42 in )

1шт.

26

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

27

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

28

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

29

L129303

FILTER SCREEN

Hydraulic Tank Screen

1шт.

30

435828A1

HOSE ASSY.

1317 mm ( 51-7/8 in ); Auxiliary Load Sense

1шт.

31

87451269

TUBE,6.35 mm OD

Load Sensing; Replaces 440932A1

1шт.

32

437596A1

HOSE ASSY.

1461 mm ( 57-1/2 in ); Steering; Load Sensing

1шт.

33

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

34

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

35

832-10406

NUT,M6 x 1, Cl 8

2шт.

36

445784A1

HARNESS

Secondary Steering Module

1шт.

37

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

38

87436049

HOSE ASSY.

940mm (37 in ); Priority Valve To Filter

1шт.

39

87436048

HOSE ASSY.

755 mm ( 29-3/4 in ); Pressure

1шт.

40

87534129

HOSE ASSY.

HOSE 1025mm ( 40-1/3 in ); Controlled Flow; Replaces 376633A2

1шт.

41

87374103

HYD TUBE,4.57 mm ID x 6.35 mm OD x 112.4, 78.3 mm L

TUBE Aux Tank

1шт.

42

87369996

BRACKET

BRACKET Upper

1шт.

43

87374100

HYD TUBE,4.57 mm ID x 6.35 mm OD x 200, 15.1 mm L

TUBE Auxiliary Steering Tank

1шт.

44

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

45

700-435

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

FITTING Adj ORFS 6mm - M12 - 6mm; Incl. 45A, 45B

1шт.

45a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

45b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
