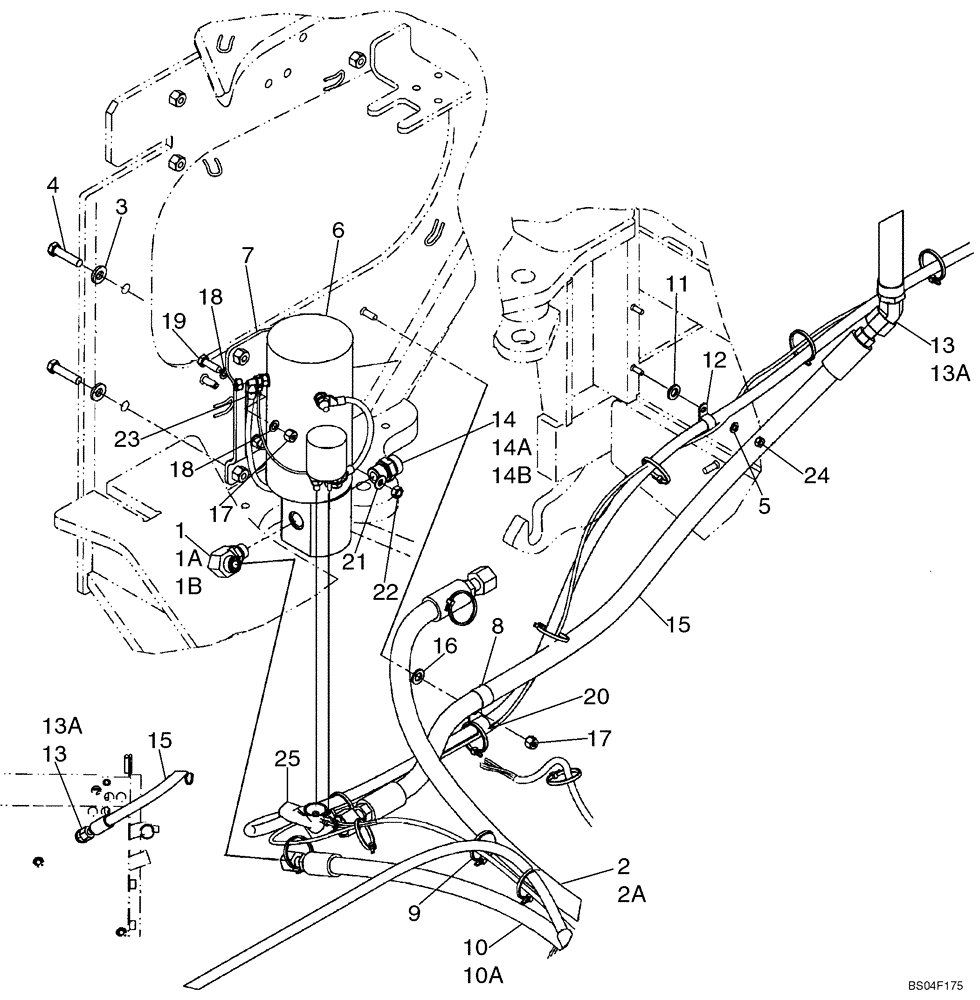

Запчасти Case 521D (05-07A) - HYDRAULICS - STEERING, AUXILIARY (05) - STEERING

1

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

2

376798A1

HOSE ASSY.

987 mm (38-7/8 in ); Priority Valve To Filter; Not Illustrated; Replaced By 87436049

1шт.

2a

87436049

HOSE ASSY.

940mm (37 in ); Priority Valve To Filter; Replaces 376798A1

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

87581480

ELECTRIC PUMP

Auxiliary Steering; Replaces 380013A1; See Figure 05-09

1шт.

7

87403157

BRACKET

Pump Mounting

1шт.

8

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

10

407920A1

HOSE ASSY.

812 mm (32 in ); Pressure; Not Illustrated; Replaced By 87436048

1шт.

10a

87436048

HOSE ASSY.

755 mm ( 29-3/4 in ); Pressure; Replaces 407920A1

1шт.

11

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

12

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

13

433530A1

ELBOW

45 Deg; 20mm ORFS-3/4" NPT

1шт.

13a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

14

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

14a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

14b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

15

407911A1

HOSE ASSY.

Aux Steering Suction; 1315mm ( 51-7/8 in )

1шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

20

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

21

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

22

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

23

L129707

NEG BATTERY CABLE

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

L126713

BOOT

Electrical

1шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
