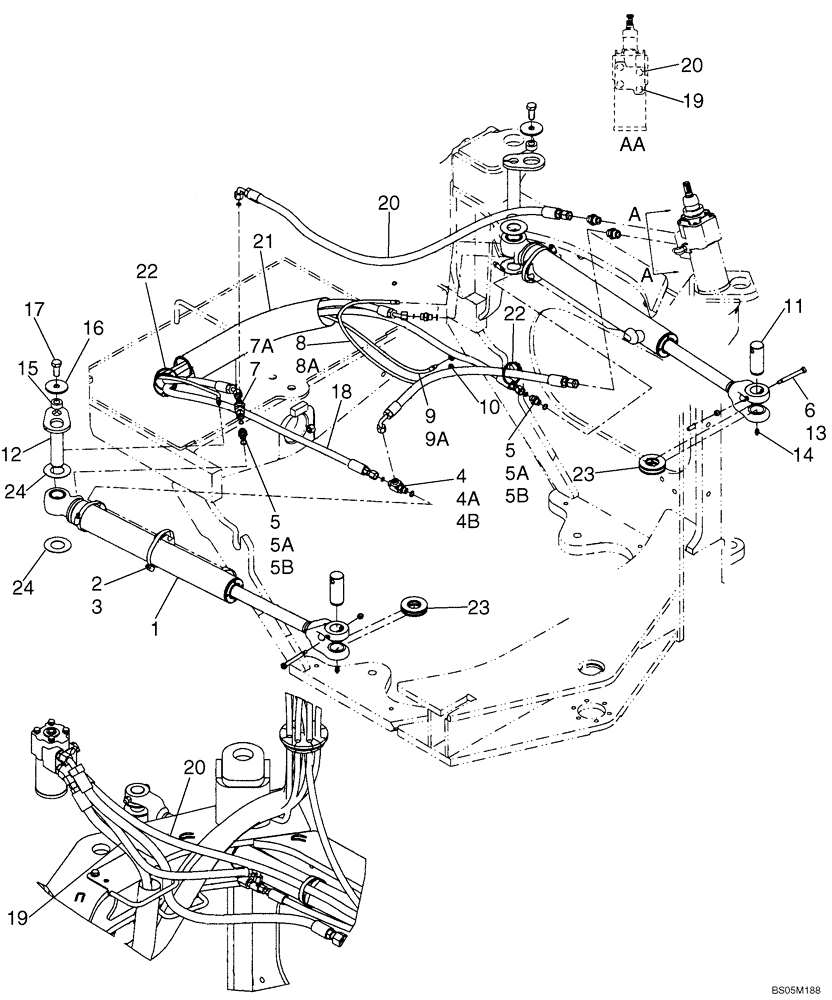

Запчасти Case 521D (05-05A) - STEERING - CYLINDER - HYDRAULICS - IF USED (05) - STEERING

REF

INSTRUCTION

STEERING CONTROL VALVE TO CYLINDERS

1шт.

1

87405370

STEERING CYLINDER,Double Acting, 34.9mm Rod, 462.5mm Stroke

64 ID x 463 strk; See Figure 05-10

2шт.

1

87405370R

REMAN-HYD CYLINDER

Steering

2шт.

1

87405370C

CORE-HYD CYLINDER

Return Number

2шт.

2

367533A1

CLAMP

3шт.

3

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

3шт.

4

700-441

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

ADJ RUN ORFS 10mm - M16 - 10mm; Incl. 4A, 4B

1шт.

4a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

2шт.

4b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 5A, 5B

3шт.

5a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

5b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

6

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

M8 x 80 Shoulder; 12.9; If Used

2шт.

7

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl.7A

1шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

8

L54693

HOSE

686 mm (21 in); Incl. 8A

1шт.

8a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

L72667

HOSE

1041 mm (41 in); Incl. 9A

1шт.

9a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

11

380583A2

PIN

Steering; Plated

2шт.

12

87369338

PIN,35.05mm OD x 180.5mm L

PIN Steering Pivot

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

15

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

2шт.

16

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

17

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

18

365858A1

HOSE ASSY.

1969 mm; Left Hand Cylinder

2шт.

19

365836A3

HOSE ASSY.

745 mm; Steering Right

1шт.

20

365837A2

HOSE ASSY.

1185 mm; Steering Left

1шт.

21

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

6шт.

23

419819A1

WASHER

39 x 76 x 4.5mm

4шт.

24

419818A1

WASHER

4шт.
