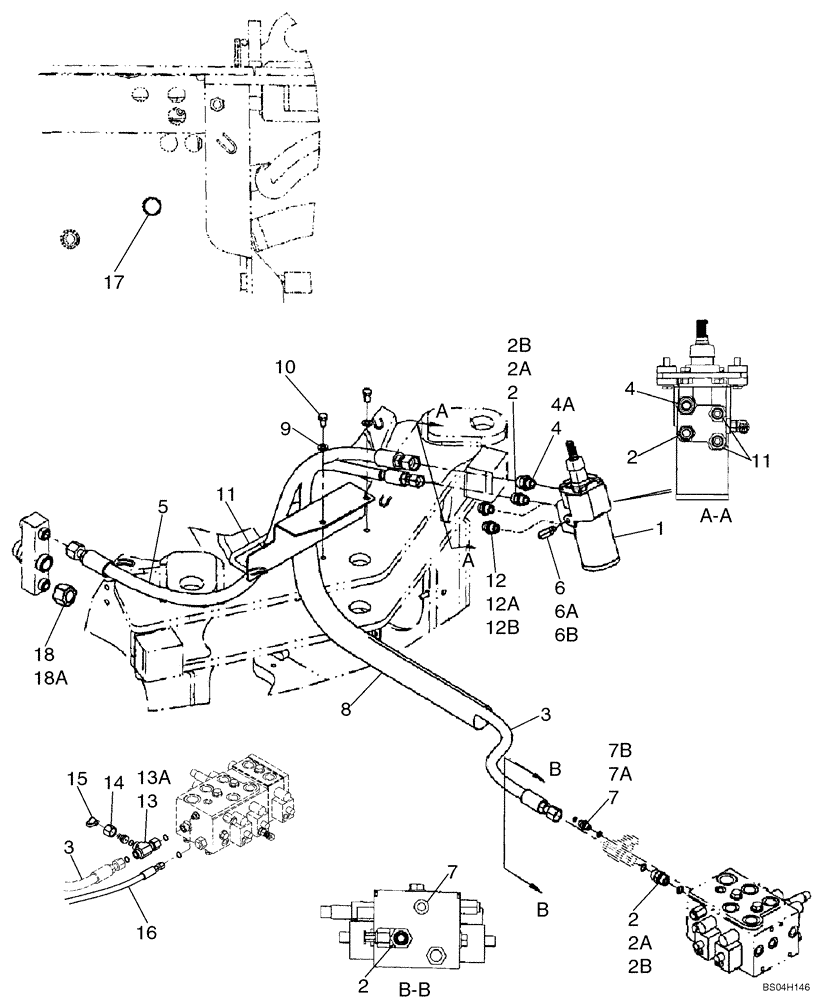

Запчасти Case 521D (05-03A) - HYDRAULICS - STEERING - STANDARD - IF USED (05) - STEERING

REF

INSTRUCTION

STEERING PRESSURE AND RETURN

1шт.

REF

INSTRUCTION

STANDARD STEERING

1шт.

1

87405438

CONTROL VALVE

Steering; See Figure 05-02

1шт.

1

87307053

HYDRAULIC VALVE

Replaces 87405438

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 2A, 2B

2шт.

2a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3

408877A1

HOSE ASSY.

1673 mm (65 - 7/8 in); Steering Pressure

1шт.

4

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 4A

1шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

5

365751A2

HOSE ASSY.

1142 mm; Steering Return

1шт.

5

87319752

HOSE ASSY.

1142mm ( 45 in ); Replaces 365751A2

1шт.

87307518

VALVE, CHECK

Used With 87319752; Not Illustrated

1шт.

6

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 6A, 6B

1шт.

6a

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb; Incl. 7A, 7B

1шт.

7a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

8

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

10

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

11

87439953

RETAINER

Hose

1шт.

12

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 12A, 12B

1шт.

12a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

12b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

13

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

ORFS SWVL 16mm or 5/8; Incl. 13A

1шт.

13a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

14

324201A1

PLUG

1шт.

15

H434163

DUST CAP

1шт.

16

408878A1

HOSE ASSY.

1857 mm (73 - 1/8 in); Steering Load Sense

1шт.

17

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

Hydraulic Tank

1шт.

18

701-907

CAP,1-3/16" - 12

ORFS 20mm or 3/4 in; Incl. 18A

1шт.

18a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.
