Запчасти Case 521D (04-35) - CAB - WIPER, REAR (04) - ELECTRICAL SYSTEMS

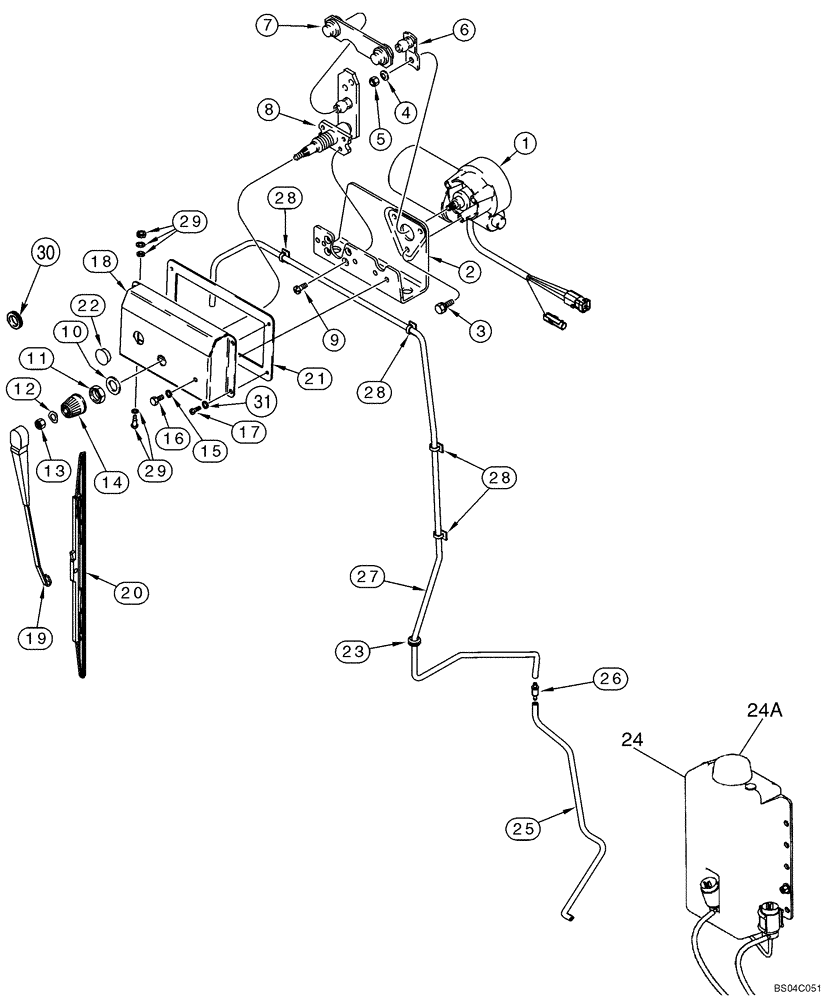

Схема запчастей Case 521D - (04-35) - CAB - WIPER, REAR (04) - ELECTRICAL SYSTEMS
29
10
28
2
11
16
27
20
1
17
29
15
12
7
22
13
21
3
24
25
18
8
26
19
4
6
28
5
23
24a
9
31
28
14
30

Артикул

Название

Примечание

Количество

413378A1

WIPER MOTOR

MOTOR, WIPER 24 volt; Incl. 1 - 14

1шт.

1

87408552

WIPER MOTOR

24 volt; Windshield Wiper; Rear; Replaces 431823A1

1шт.

87408553

KIT

Hardware; Incl. 10, 11, 13, 14

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, Special

3шт.

4

NSS

NOT SOLD SEPARAT

Washer, Special, Retaining

1шт.

5

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

6

NSS

NOT SOLD SEPARAT

Arm, Wiper

1шт.

7

413824A1

LINK

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Screw, Special

4шт.

10

L112088

WASHER

Shaft

1шт.

11

L112087

NUT

Shaft

1шт.

12

L112089

WASHER

1шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

L112081

CAP

1шт.

15

892-11006

LOCK WASHER,M6

5шт.

16

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

18

324869A2

COVER

Rear Wiper

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM, WIPER Windshield Wiper Rear; Replaced By 87319296

1шт.

19

87319296

WIPER ARM

ARM, WIPER Windshield Wiper Rear

1шт.

20

132024A1

WIPER BLADE

Replaced By 87319297

1шт.

20

87319297

WIPER BLADE,Single, 500mm L

Blade; 500mm (19-1/2 in)

1шт.

21

1345074C1

GASKET,5mm Thk

1шт.

22

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

23

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

24

371185A1

RESERVOIR, WINDSHIEL,4.75L

Windshield Washer; Front And Rear; See Figure 04-27 For Mounting Hardware; Incl. 24a

1шт.

24a

87439461

CAP

Vented With Tether

1шт.

25

8500662

HOSE WASHER

2540 mm (100 in); Reservoir To Check Valve; Cut From 4-1056T1

1шт.

26

324203A1

CHECK VALVE

1шт.

27

324469A1

HOSE

3073 mm (121 in); Windshield Washer; Rear; Cut From 4-1056T1

1шт.

28

L100659

CLIP

4шт.

29

324550A1

JET

Windshield Washer; Rear

1шт.

30

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Not Illustrated

1шт.

Выбрано товаров: 36
