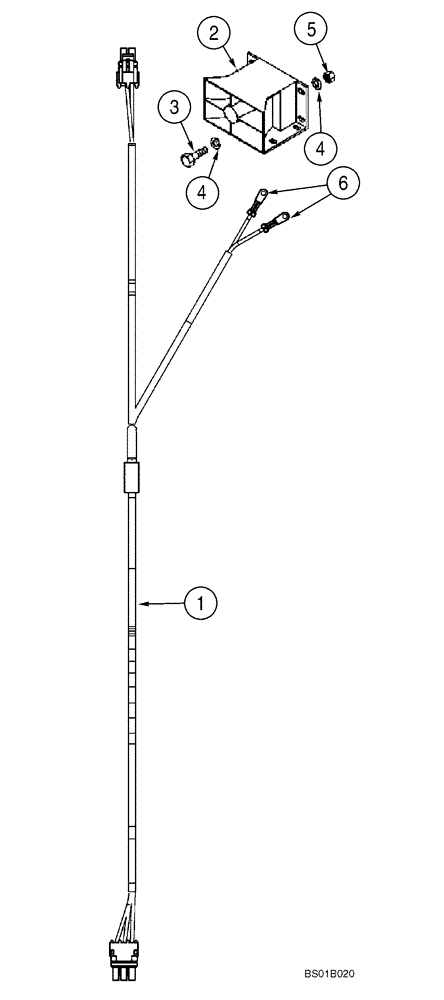

Запчасти Case 521D (04-30) - MOUNTING - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

382960A2

HARNESS

Hood

1шт.

2

D121972

ALARM

Backup

1шт.

3

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

4

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

1964702C1

TERMINAL CONNECTOR

Backup Alarm

2шт.

7

445786A1

WIRE HARNESS

Jumper; Not Illustrated

1шт.
