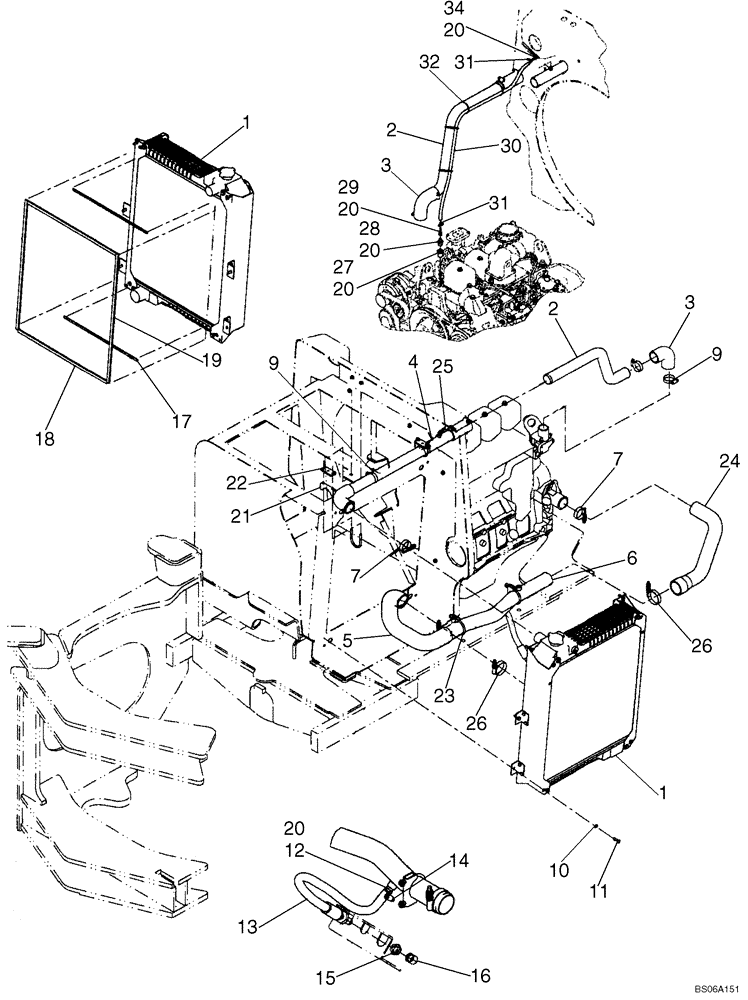

Запчасти Case 521D (02-02) - RADIATOR - MOUNTING (02) - ENGINE

1

347611A3

RADIATOR

Incl. 1A - 1F

1шт.

1a

254409A1

GASKET,3.15mm Thk

1шт.

1b

403767A1

TANK

Upper

1шт.

1c

403768A1

TANK

Bottom

1шт.

1d

403769A1

CHANNEL

Right Side

1шт.

1e

403770A1

HOLDER

Left Side

1шт.

1f

A170241

RADIATOR CAP

15 psi

1шт.

2

86991190

PIPE

Coolant Top

1шт.

3

381232A1

HOSE,44.50 mm ID x 87.00 mm, SAE J20R4 Class D1

Formed

2шт.

4

87402554

TUBE,675 mm L

Coolant Top

1шт.

5

380125A2

RADIATOR HOSE,57.20 mm ID x 218.00 mm, SAE 20R4, CLASS C OR D1,SAE J20R4

Formed; Bottom

1шт.

6

86991248

PIPE

Coolant Bottom

1шт.

7

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

2шт.

9

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

5шт.

10

892-11008

LOCK WASHER,8mm ID

6шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

12

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

13

86991203

HOSE

Remote Coolant Drain

1шт.

14

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

15

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

16

218-755

CAP,37 Degree, 3/4"-16

1/2" tube

1шт.

17

381963A1

SEAL

450 ML (17-11/16 IN); Cut From 187874C2; Upper And Lower

2шт.

18

381962A1

SEAL

537 ml (21-1/8 in); Cut From 198573C2; Upper And Lower

2шт.

19

381938A1

SEAL

652 ml (25-11/16 in); Cut From 198573C2; Upper And Lower

2шт.

21

382189A1

CLAMP

U-Bolt Assy

2шт.

22

382188A2

PLATE

2шт.

23

393632A1

CLAMP

U-Bolt Assy

2шт.

24

86991195

HOSE,48.00 mm ID, 57.20 mm ID x 254.00 mm, SAE J20R4 Class D1

Formed, Engine, Bottom

1шт.

25

8501025

FLEXIBLE HOSE,44.50 mm ID x 110.00 mm, SAE 20R4 Class D1

Coolant; Split

2шт.

26

L115548

CLAMP,57.15mm - 79.38mm

3шт.

27

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

28

J911901

VALVE, CHECK

Coolant

1шт.

29

217-191

FITTING,1/4" Hose Barb x 1/8" Female NPTF

1шт.

30

31-1190

HOSE,6.4mm ID x 965mm L, SAE 30R2

Bleed Line; 965mm (38 in ); Cut From 31-1182

1шт.

31

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

32

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (175 - 200 mm)

4шт.

33

345-87

SEALANT

592

2шт.

34

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

34

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Replaces 217-130

1шт.
