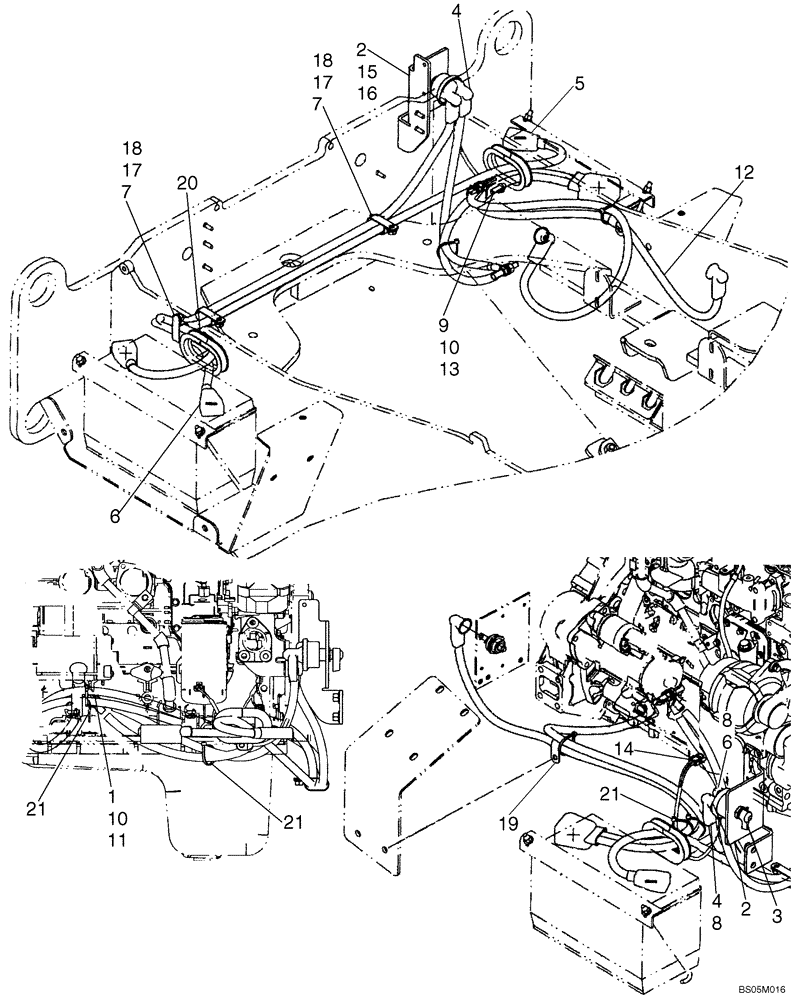

Запчасти Case 521D (04-20B) - BATTERY - CABLES - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

ROUTING CHANNGE

1шт.

1

L127553

STUD

1шт.

2

87450474

PLATE

Master Disconnect; Black; If Used

1шт.

3

L126256

SWITCH

1шт.

4

368091A2

CABLE

Ground

1шт.

5

87403980

ELECTRIC CABLE

Crossover

1шт.

6

87403981

NEG BATTERY CABLE

Negative

1шт.

7

R54363

CLAMP

Double

3шт.

8

L126713

BOOT

4шт.

9

383371A1

CABLE

Ground; Engine Block

1шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

11

L127555

NUT,Hex, 3/8" - 16

3/8-16; Brass

1шт.

12

87439017

CABLE

1шт.

13

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

14

L127676

WIRE HARNESS

Disconnect

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

11 x 24 x 2 mm

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

19

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

23.8mm; M10 Bolt

1шт.

20

398771A1

CONDUIT

Battery Cable

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.
