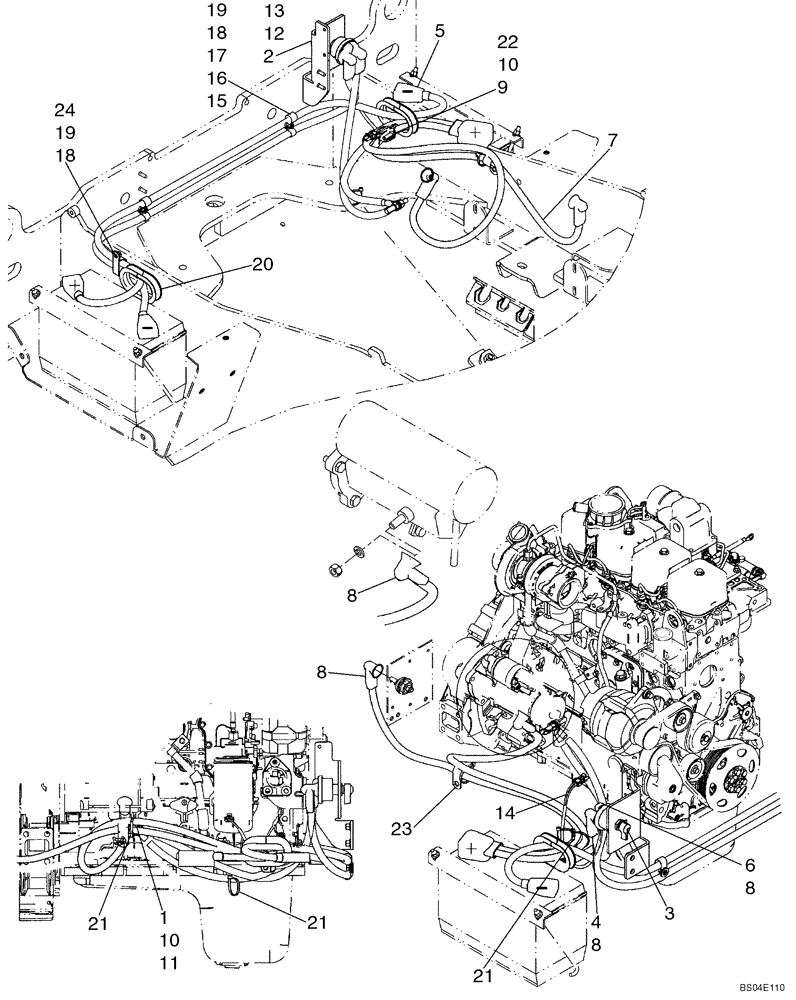

Запчасти Case 521D (04-20A) - BATTERY - CABLES - DENSO STARTER - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

USE WITH DENSO STARTER

1шт.

1

L127553

STUD

1шт.

2

8602936

PLATE

Master Disconnect; If Used

1шт.

2a

87450474

PLATE

Master Disconnect; Black; If Used

1шт.

3

L126256

SWITCH

1шт.

4

368091A2

CABLE

Ground

1шт.

5

87403980

ELECTRIC CABLE

Crossover

1шт.

6

87403981

NEG BATTERY CABLE

Negative

1шт.

7

87439017

CABLE

Battery to Starter And Relay

1шт.

8

L126713

BOOT

4шт.

9

383371A1

CABLE

Ground; Engine Block

1шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

11

L127555

NUT,Hex, 3/8" - 16

3/8-16; Brass

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 16 x 1.6 mm

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

L127676

WIRE HARNESS

Disconnect

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

16

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

(20.6 mm)

2шт.

17

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

(15.9 mm; M8 Bolt)

2шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 16 x 1.6 mm

3шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

20

398771A1

CONDUIT

Battery Cable

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

22

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

23

515-25254

CLAMP,1", Insul, 1/2" Bolt

(25.4 mm; M12 Bolt)

1шт.

24

R54363

CLAMP

Double

1шт.
