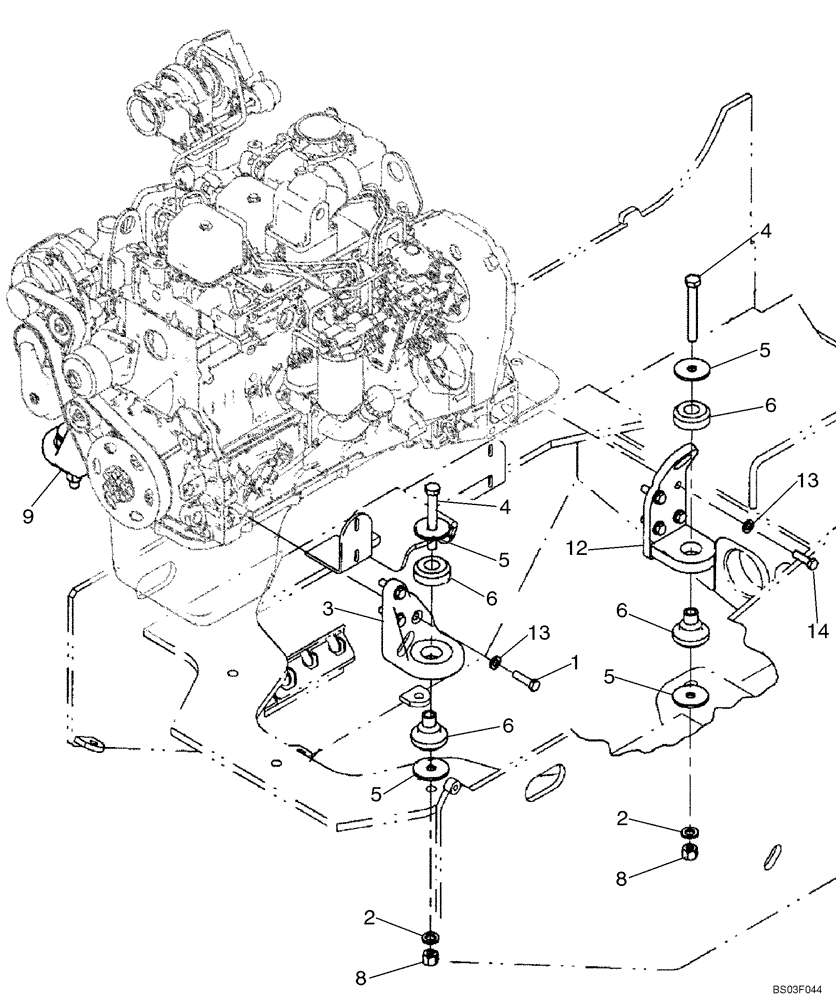

Запчасти Case 521D (02-01) - MOUNT, ENGINE (02) - ENGINE

1

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

3

8602303

ENGINE MOUNT

Rear Right

1шт.

4

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

5

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

8шт.

5

227809A1

WASHER

No Longer Used; Order 496-81025

4шт.

6

361811A1

ISOLATOR

6шт.

8

832-10416

NUT,M16 x 2, Cl 8

4шт.

9

8602304

ENGINE MOUNT

Rear Left

1шт.

12

86990587

BRACKET

Flywheel Housing

1шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

87402787

SUPPORT

Front Engine; No Longer Used; Not Illustrated

1шт.

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4mm; No Longer Used; Not Illustrated

4шт.

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

No Longer Used; Not Illustrated

4шт.
