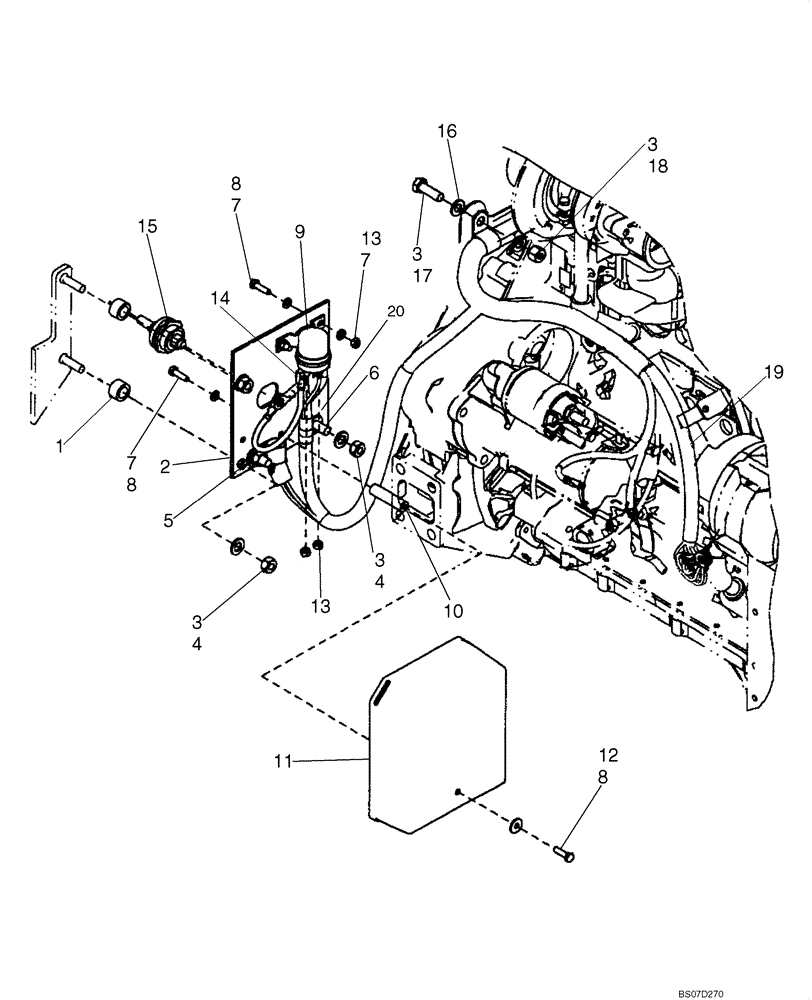

Запчасти Case 521D (04-18A) - HARNESS, REAR - RELAY PANEL - IF USED (04) - ELECTRICAL SYSTEMS

1

D44696

BUSHING

2шт.

2

87404991

PLATE

Relay Mounting

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

120398A1

RELAY

Starter

1шт.

10

253065A1

SPACER

1шт.

11

L114612

COVER

1шт.

12

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

13

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

14

8602174

WIRE CONNECTOR,8mm, 10 - 6 mm2

Block To Relay

1шт.

15

319055A1

JUNCTION BLOCK

1шт.

16

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

M6

2шт.

19

87374776

HARNESS

Rear Chassis

1шт.

20

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.
