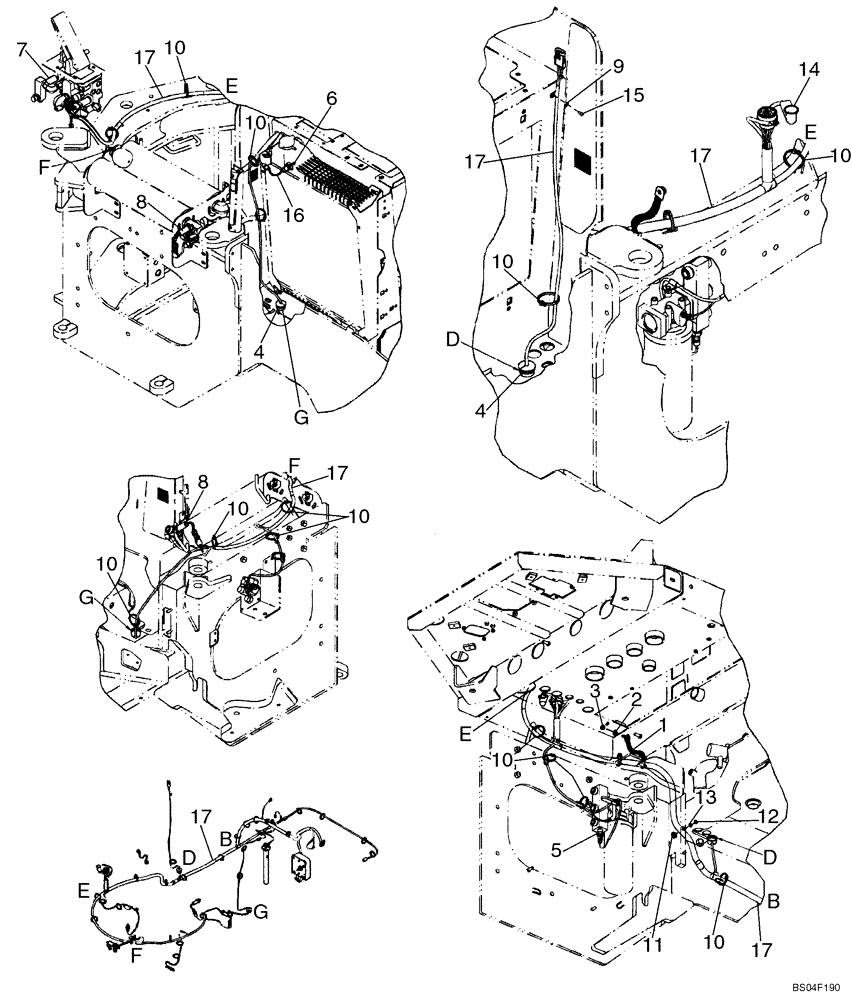

Запчасти Case 521D (04-17A) - HARNESS - REAR CHASSIS - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

USED WITH DENSO STARTER

1шт.

REF

INSTRUCTION

FOR RELAY PANEL SEE FIGURE 04-18

1шт.

1

L126051

GROUND STRAP

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

3

253347A1

NUT,Hex, M10 x 1.5

Brass

2шт.

4

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

2шт.

5

321446A1

SENSOR

Engine Coolant

1шт.

6

419792A2

SENSOR

Coolant Level

1шт.

7

87549589

SWITCH

Brake Declutch; Replaces 377898A3

1шт.

8

377899A1

SWITCH

Redundant Brake

1шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

25шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

L126713

BOOT

Electrical

1шт.

15

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

1шт.

16

445786A1

WIRE HARNESS

Coolant Level Sensor

1шт.

17

87439013

HARNESS

Rear

1шт.
