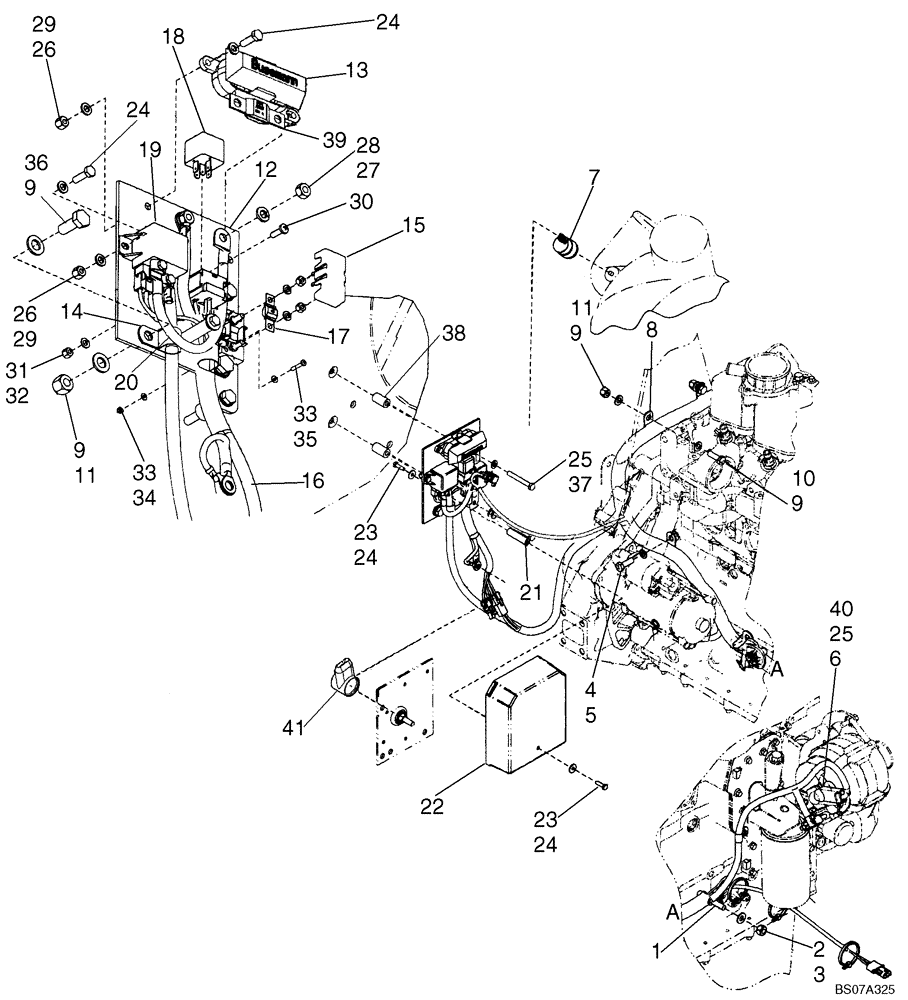

Запчасти Case 521D (04-16A) - HARNESS - ENGINE - GRID HEATER (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH GRID HEATER

1шт.

REF

INSTRUCTION

IF USED

1шт.

1

L127553

STUD

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

3

L127555

NUT,Hex, 3/8" - 16

1шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

6

L126713

BOOT

Electrical

1шт.

7

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

8

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

12

87404975

PLATE

Relay

1шт.

13

440038A1

JUNCTION BLOCK

Block Fuse

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

15

87404860

FUSE HOLDER

1шт.

16

87404585

WIRE HARNESS

Relay

1шт.

17

8501314

FUSE

40 amp

1шт.

18

326845A1

RELAY,24V

1шт.

19

1546485C1

RELAY,24V

Power

1шт.

20

87404974

ELECTRIC CABLE

Power Fuse

1шт.

21

253065A1

SPACER

1шт.

22

L114612

COVER

1шт.

23

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

24

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

27

892-11008

LOCK WASHER,8mm ID

2шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

29

832-10406

NUT,M6 x 1, Cl 8

4шт.

30

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

31

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

32

832-10405

NUT,M5 x .8, Cl 8

1шт.

33

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

34

824-1403

NUT,M3, Cl 5

2шт.

35

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

2шт.

36

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

37

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

38

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

2шт.

39

8501311

FUSE,150A, Megaval

150 Amp

1шт.

40

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

41

357906A1

BOOT

Electrical

1шт.
