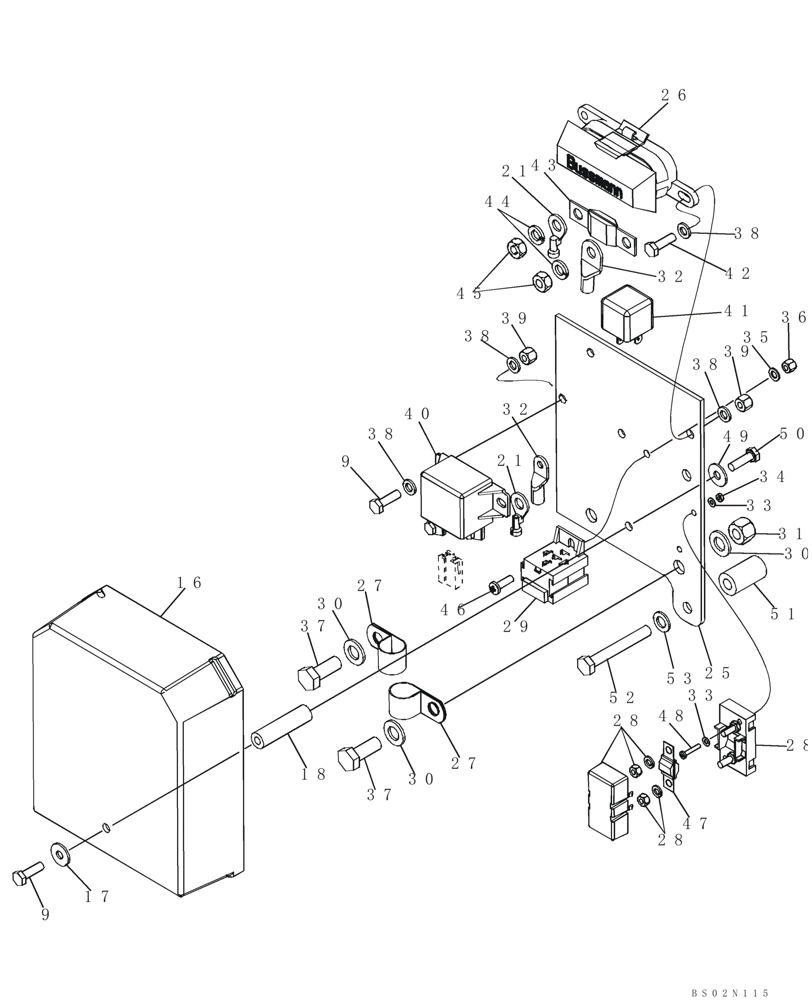

Запчасти Case 521D (04-16) - HARNESS - ENGINE - RELAY PANEL (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH GRID HEATER

1шт.

87404983

WIRE HARNESS

With Grid Heater

1шт.

9

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

16

L114612

COVER

1шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

18

253065A1

SPACER

1шт.

21

8602174

WIRE CONNECTOR,8mm, 10 - 6 mm2

76 mm; Block To Relay

1шт.

25

87404975

PLATE

Relay

1шт.

26

440038A1

JUNCTION BLOCK

Block Fuse

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

28

87404860

FUSE HOLDER

1шт.

29

87404585

WIRE HARNESS

Relay

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

32

87404974

ELECTRIC CABLE

Power Fuse

1шт.

33

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

34

824-1403

NUT,M3, Cl 5

2шт.

35

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

36

832-10405

NUT,M5 x .8, Cl 8

1шт.

37

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

38

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

39

832-10406

NUT,M6 x 1, Cl 8

4шт.

40

1546485C1

RELAY,24V

Power

1шт.

41

326845A1

RELAY,24V

1шт.

42

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

43

8501311

FUSE,150A, Megaval

150 Amp

1шт.

44

892-11008

LOCK WASHER,8mm ID

2шт.

45

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

46

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

47

8501314

FUSE

40 amp

1шт.

48

840-1316

SCREW,Pan, M3 x 16mm, Cl 4.8

2шт.

49

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

50

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

51

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

2шт.

52

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

53

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
