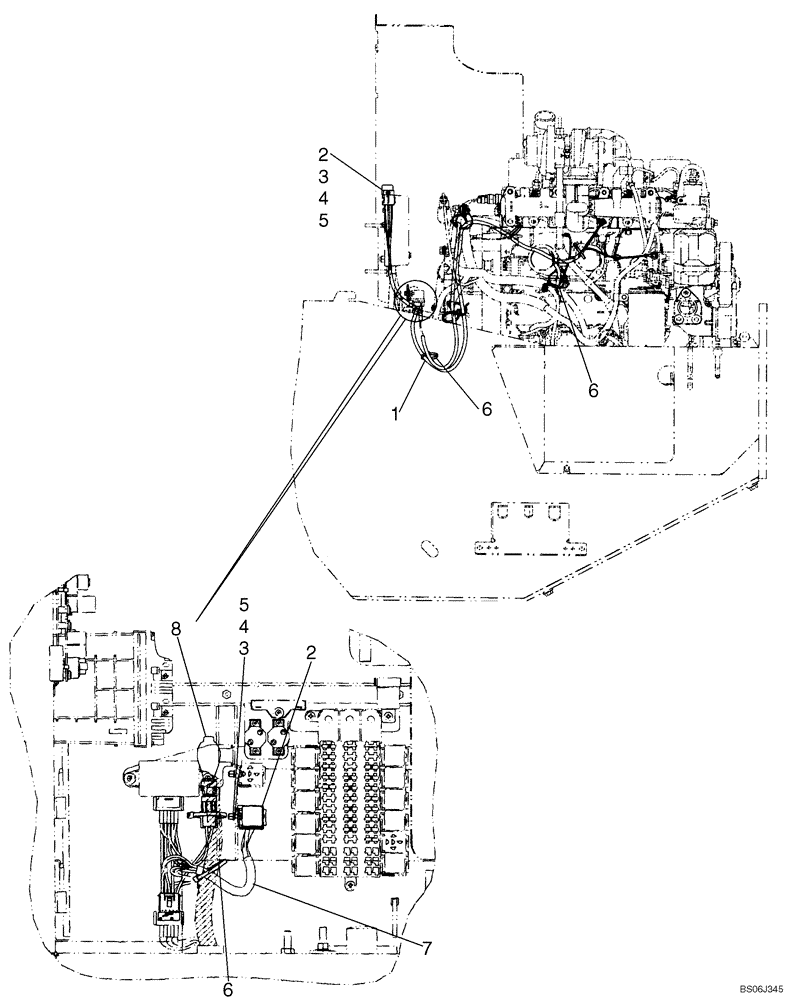

Запчасти Case 521D (04-15C) - HARNESS - GRID HEATER - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

JUMP HARNESS 87533650 ELIMINATES THE KKSB FUNCTION DURING ENGINE CRANKING. THE HARNESS IS TO IMPROVE COLD WEATHER CONDITION STARTING.

1шт.

1

87533650

WIRE HARNESS

KKSB JUMP

1шт.

2

326845A1

RELAY,24V

1шт.

3

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

5

832-10405

NUT,M5 x .8, Cl 8

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

7

87545106

WIRE HARNESS

GRID HEATER CUTOFF

1шт.

8

87545093

RESISTOR

1шт.
