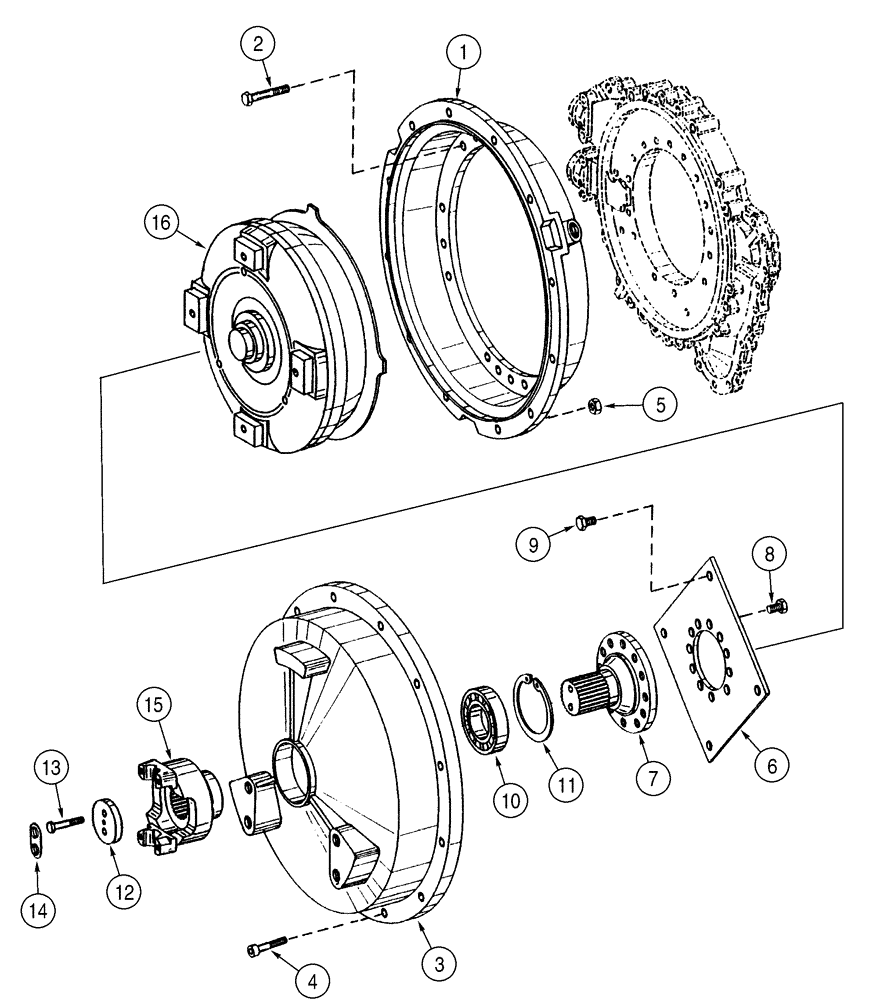

Запчасти Case 521D (06-04) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT (06) - POWER TRAIN

361424A1

TRANSMISSION

ZF No. 4656 024 017; See Figures 06-04 - 06-21, 07-01

1шт.

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

361424A1C

CORE-TRANSMISSION

Return number

1шт.

1

330783A1

CONVERTER

HOUSING

1шт.

2

330784A1

CAPSCREW,Hex, M10 x 65mm

M10 x 65

18шт.

3

404100A1

COVER

1шт.

4

331686A1

CAPSCREW,M10 x 50mm

M10 x 40

12шт.

5

829-1510

NUT,M10, Cl 10

12шт.

6

404104A1

DIAPHRAGM

1шт.

7

412712A1

CLUTCH INPUT SHAFT

1шт.

8

330788A1

SCREW

M12 x 18

12шт.

9

330788A1

SCREW

M12 x 18

4шт.

10

404105A1

BALL BEARING

1шт.

11

800-2190

SNAP RING,M90, Int

1шт.

12

404106A1

WASHER

1шт.

13

331351A1

SCREW

M8 X 50

2шт.

14

404107A1

WASHER

1шт.

15

404108A1

YOKE

Flange

1шт.

16

404218A1

CONVERTER

1шт.

16

84141993R

REMAN-TORQUE CONVERT

Reman for New PN 404218A1

1шт.

16

84141993C

CORE-TORQUE CONVERTR

Return Number

1шт.
