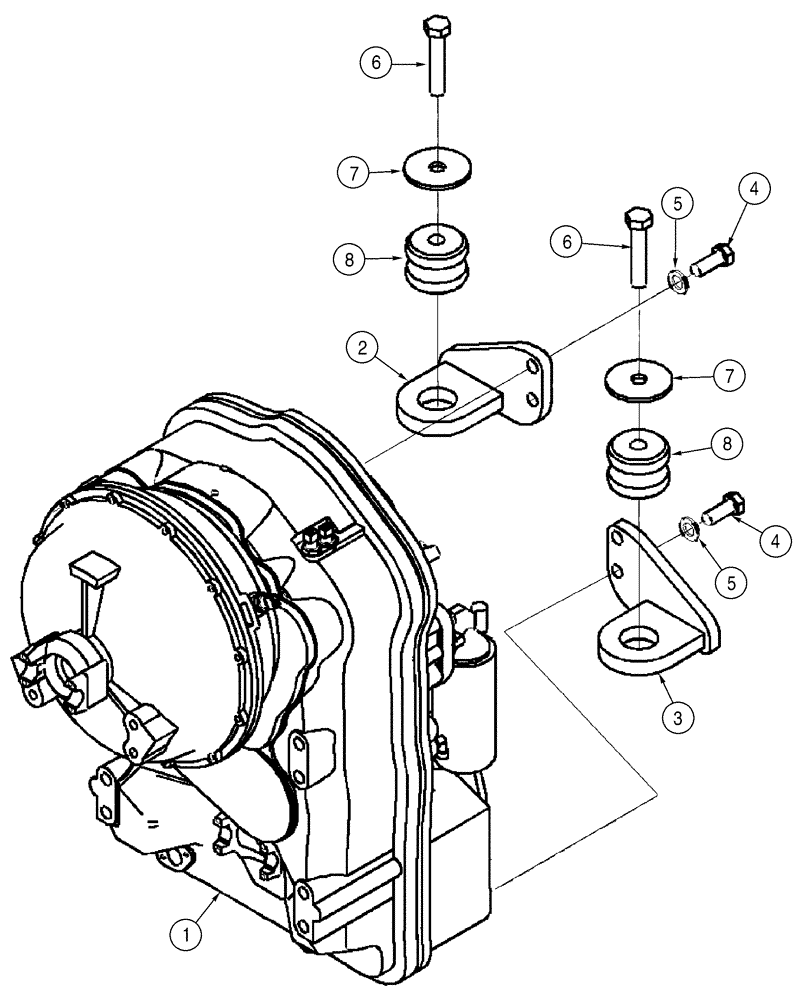

Запчасти Case 521D (06-02) - MOUNTING - TRANSMISSION (06) - POWER TRAIN

1

361424A1

TRANSMISSION

Transmission, ZF No. 4656 024 017; See Figures 06-04 - 06-21, 07-01

1шт.

1

361424A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 521D Tier 1 & 2, Model Number 4WG130, Stock Number 4656 024 017

1шт.

1

361424A1C

CORE-TRANSMISSION

Return number

1шт.

2

357657A1

BRACKET

Left-Hand

1шт.

3

357654A1

BRACKET

Right-Hand

1шт.

4

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

6

827-22110

BOLT,Hex, M22 x 2.5 x 110mm, Cl 10.9

2шт.

7

8604726

WASHER,23.8mm ID x 85.7mm OD x 6.4mm Thk

2шт.

8

361187A1

ISOLATOR

2шт.

9

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

Not Illustrated

2шт.
