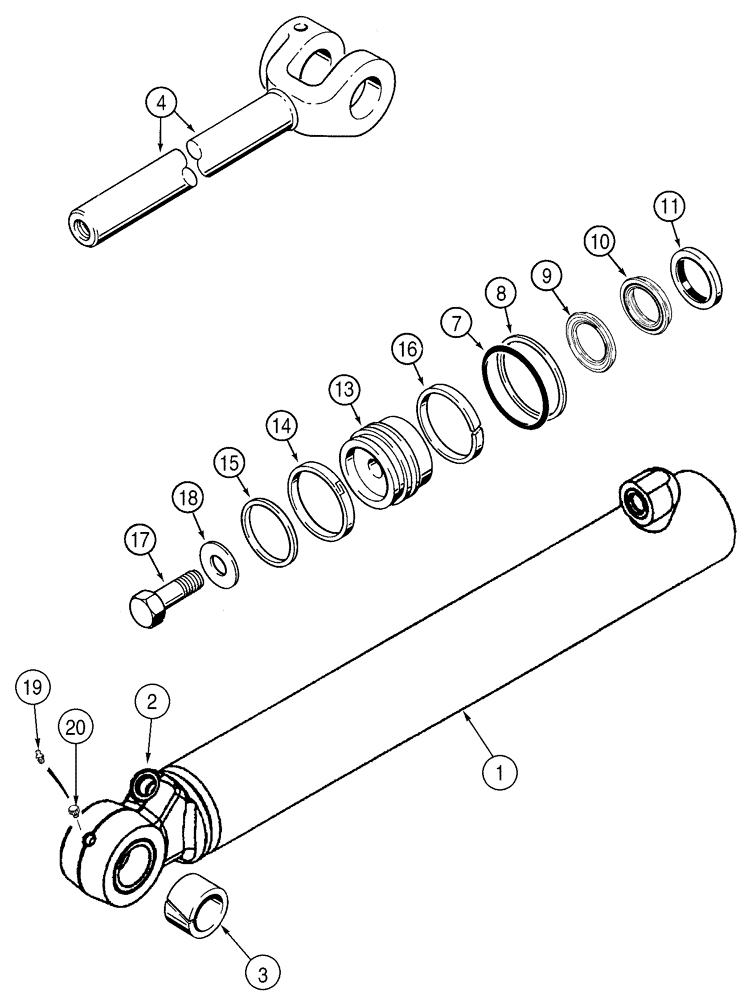

Запчасти Case 521D (05-10) - CYLINDER ASSY - STEERING (05) - STEERING

359048A1

CYLINDER ASSY.

Steering, 64 ID x 463 strk; Incl. Ref 1 - 20

2шт.

1

359047A1

TUBE,63.4 mm ID, 76.2 mm OD, 663 mm Length

Incl. Ref 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Eye

1шт.

3

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

4

359041A1

ROD ASSY.

1шт.

359119A1

PACKAGE

Incl. Ref 5 - 18

1шт.

5

348177A1

GLAND

Incl. Ref 6 - 12

1шт.

6

348176A1

GLAND

1шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

279532A1

SEAL

Rod and Buffer Seal; Incl. Ref 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

226847A1

WIPER SEAL

Wiper, Piston Rod

1шт.

12

348189A1

GUIDE RING

Not Illustrated

1шт.

348175A1

PISTON ASSY.

Incl. Ref 13 - 16

1шт.

13

348174A1

PISTON

1шт.

14

348188A1

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

16

348187A1

RING

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

19

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Taper

1шт.

20

553-104

PLUG,M16 x 1.5, ORB, Plastic

1шт.

360986A1

KIT

Seal; Includes 279532A1; Ref 7, 8, 11, 12, 14 - 16

1шт.
