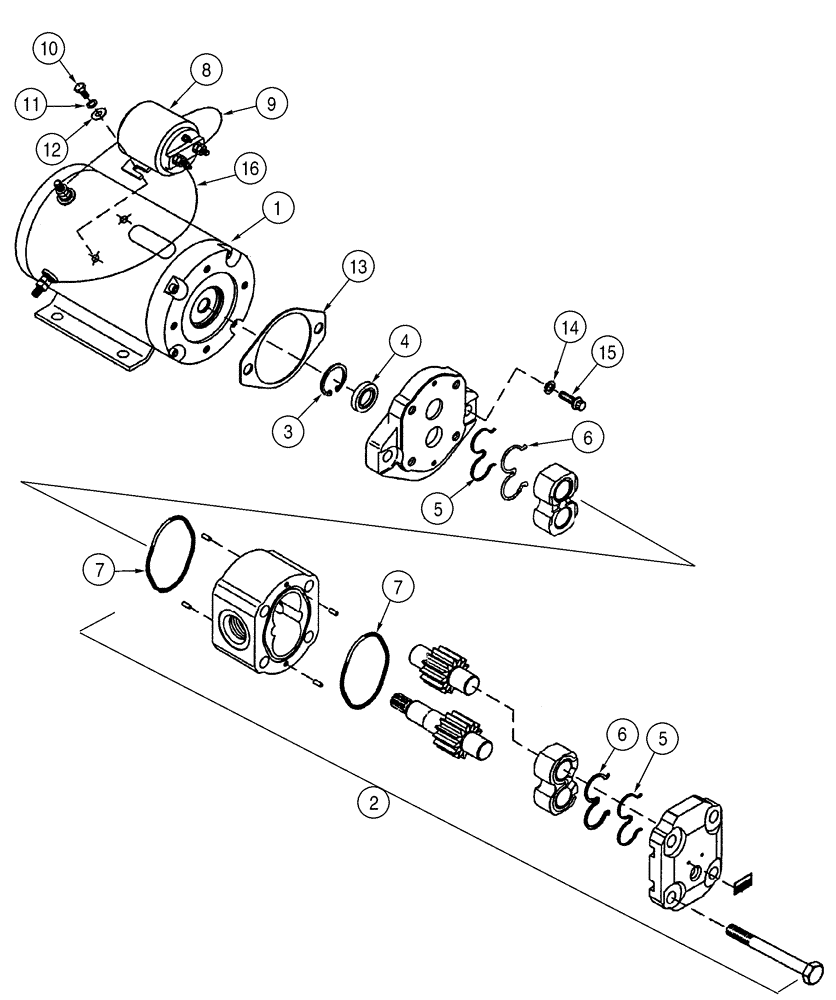

Запчасти Case 521D (05-09) - PUMP - STEERING, AUXILIARY (05) - STEERING

380013A1

PUMP

Auxiliary Steering; Incl. Ref 1 - 15

1шт.

1

408834A1

MOTOR, ELECTRIC

1шт.

2

408835A1

PUMP, HYDRAULIC

1шт.

8605158R

REMAN-HYD PUMP

521D (BEFORE S/N JEE0135500),Reman for New P/N 408835A1

1шт.

8605158C

CORE-HYDRAULIC PUMP

Return Number

1шт.

408838A1

SEAL KIT

Seal; Incl. Ref 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

6

NSS

NOT SOLD SEPARAT

Seal

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

408836A1

KIT

Incl. Ref 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

Switch

1шт.

9

NSS

NOT SOLD SEPARAT

Cable

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

2шт.

11

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

12

NSS

NOT SOLD SEPARAT

Washer

2шт.

408837A1

KIT

Mounting; Incl. Ref 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Lock

2шт.

15

NSS

NOT SOLD SEPARAT

Screw

2шт.

16

409033A1

ELECTRICAL WIRE

WIRE Primary

1шт.
