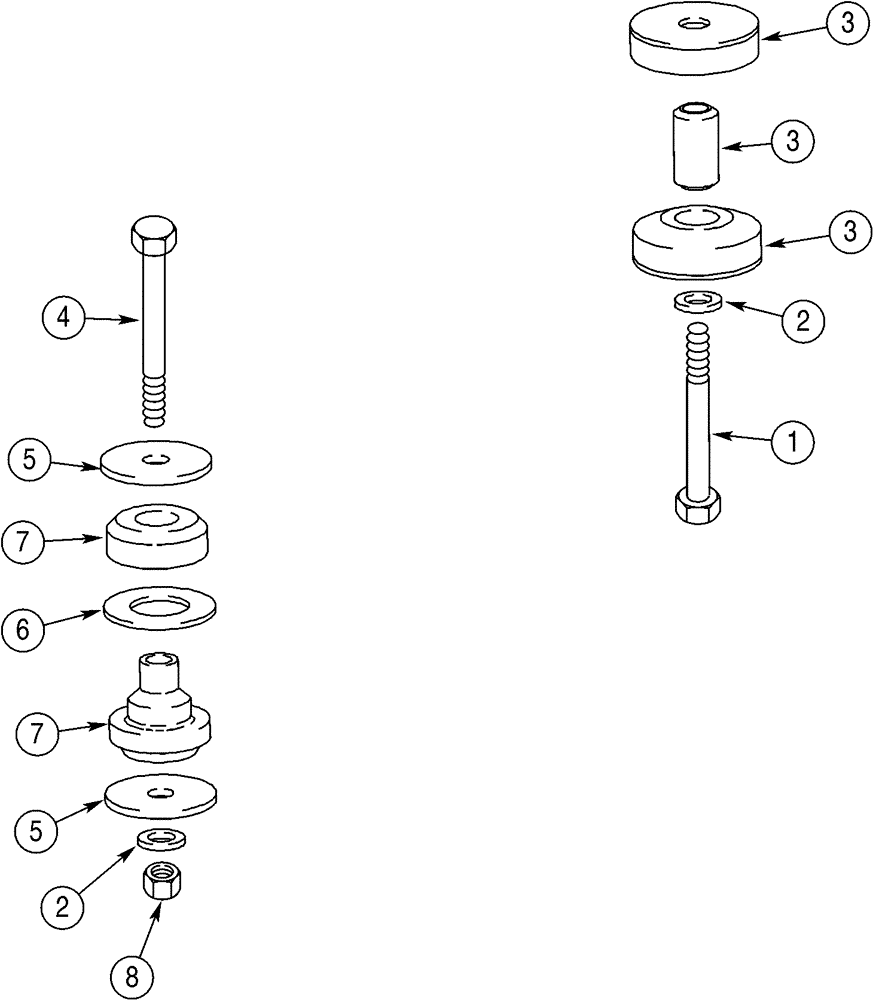

Запчасти Case 521D (02-01) - MOUNT, ENGINE (02) - ENGINE

REF

INSTRUCTION

FRONT

1шт.

1

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

3

372217A1

ISOLATOR

1шт.

REF

INSTRUCTION

REAR

1шт.

4

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

5

361812A1

WASHER

23/32 x 3-3/4 x 3/16

4шт.

6

371113A1

WASHER,38.1mm ID x 72mm OD x 3.57mm Thk

2шт.

7

361811A1

ISOLATOR

2шт.

8

829-1416

NUT,M16, Cl 10

2шт.
