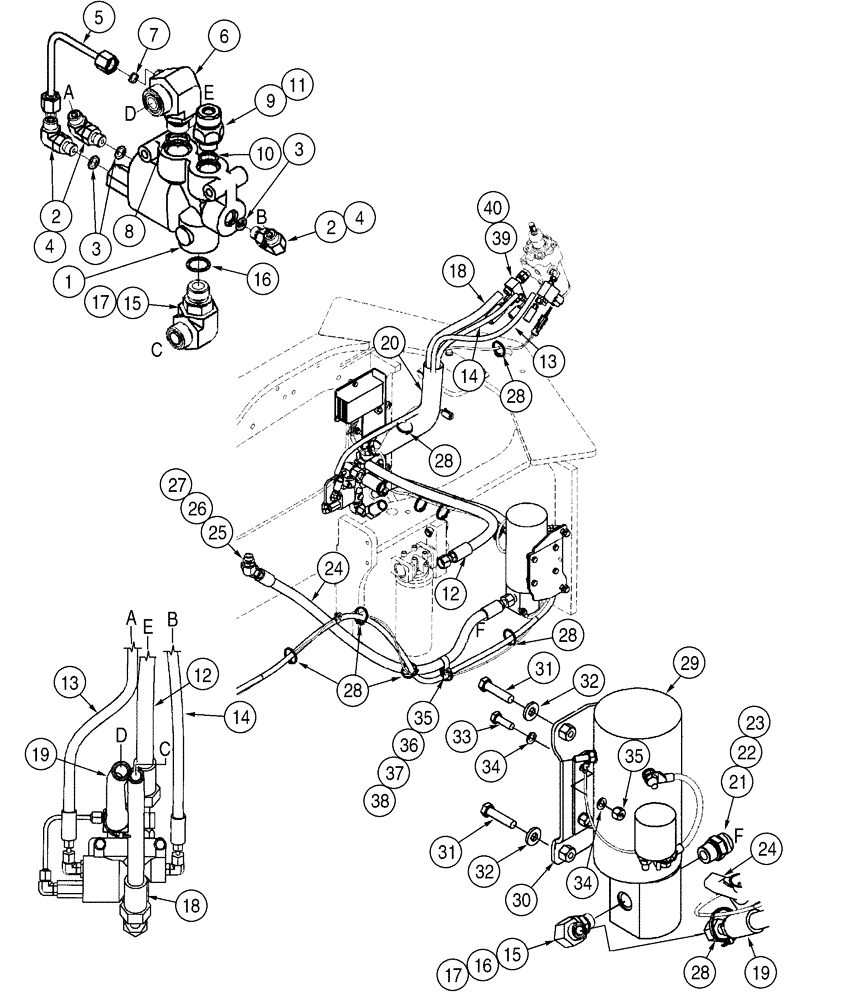

Запчасти Case 521D (05-07) - HYDRAULICS STEERING, AUXILIARY (05) - STEERING

1

8605253

VALVE

Priority; See Figure 05-08

1шт.

2

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

90 deg; Incl. Ref 3, 4

3шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

4

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

5

376795A2

TUBE,6.35 mm OD, 89, 79 mm Length

1шт.

6

376794A1

FITTING

Incl. Ref 7, 8

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

9

392354A1

VALVE, CHECK

Incl. Ref 10, 11

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

12

87534129

HOSE ASSY.

HOSE 1025mm ( 40-1/3 in ); Controlled Flow; Replaces 376633A2

1шт.

13

376770A3

HOSE ASSY.

Auxiliary Load Sense

1шт.

14

377034A2

HOSE ASSY.

Pressure Switch

1шт.

15

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 16, 17

2шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

18

407920A1

HOSE ASSY.

Pressure

1шт.

19

376798A1

HOSE ASSY.

1шт.

20

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

Sleeve

1шт.

21

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 22, 23

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

23

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

24

407911A1

HOSE ASSY.

Suction

1шт.

25

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

45 deg, M20 fc sl x 2,7 Or; Incl. Ref 26, 27

1шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

27

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

29

380013A1

PUMP

Auxiliary Steering; See Figure 05-09

1шт.

30

413916A1

BRACKET

1шт.

31

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

32

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

34

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

35

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

36

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

37

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

38

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

39

376636A1

FITTING

Incl. Ref 40

1шт.

40

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

3шт.

33

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
