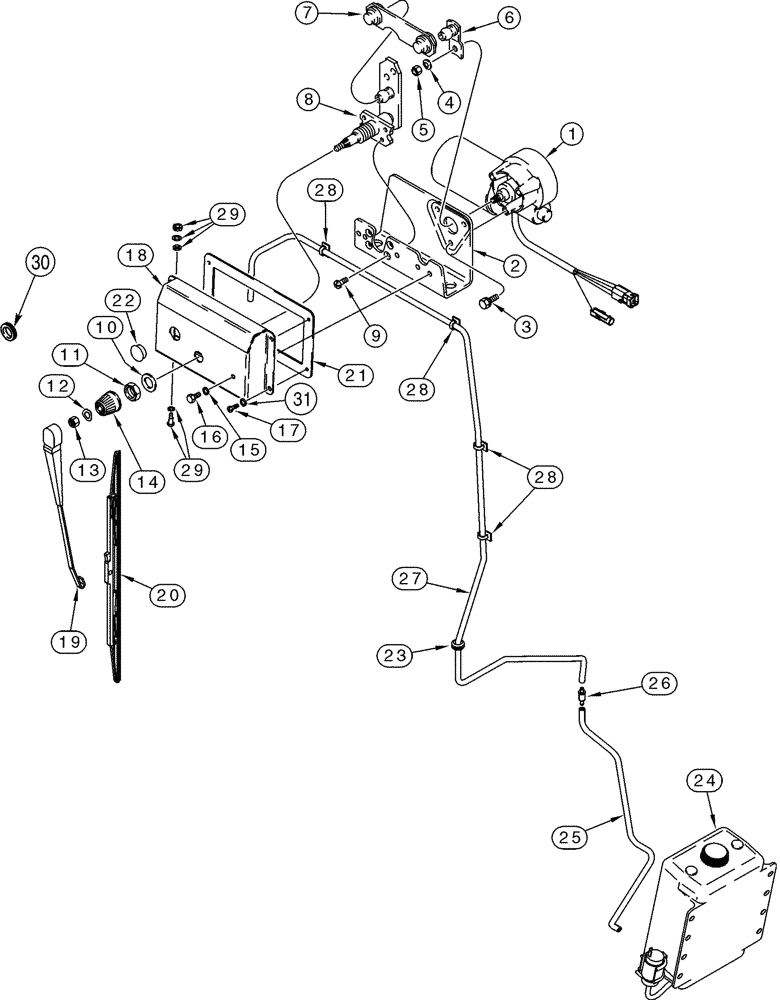

Запчасти Case 521D (04-31) - CAB - WIPER, REAR (04) - ELECTRICAL SYSTEMS

A187672

WIPER MOTOR

MOTOR, WIPER 24 volt; Incl. Ref 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR, WIPER 24 volt; Windshield Wiper, Rear

1шт.

2

N8359

SUPPORT

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

3шт.

4

N8361

SPRING WASHER

1шт.

5

L112090

NUT

1шт.

6

N8360

SUPPORT

1шт.

7

N8358

LINK

1шт.

8

N14112

SHAFT

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

4шт.

10

L112088

WASHER

1шт.

11

L112087

NUT

1шт.

12

L112089

WASHER

1шт.

13

326203A1

NUT

1шт.

14

L112081

CAP

1шт.

15

192-81007

LOCK WASHER,1/4"

1шт.

16

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

18

324869A1

SUPPORT

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM, WIPER

1шт.

20

132024A1

WIPER BLADE

1шт.

21

1345074C1

GASKET,5mm Thk

1шт.

22

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

23

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

24

371185A1

RESERVOIR, WINDSHIEL,4.75L

Windshield Washer; Front and Rear, Complete Tank

1шт.

24

48042633

PUMP,24V

2шт.

25

371846A1

HOSE

2083 mm (82 in); Reservoir To Check Valve; Cut From 4-1056T1

1шт.

26

324203A1

CHECK VALVE

1шт.

27

324469A1

HOSE

3073 mm (121 in); Windshield Washer, Rear; Cut From 1968141CX

1шт.

28

L100659

CLIP

4шт.

29

324550A1

JET

Nozzle

1шт.

30

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.

31

892-11006

LOCK WASHER,M6

4шт.
