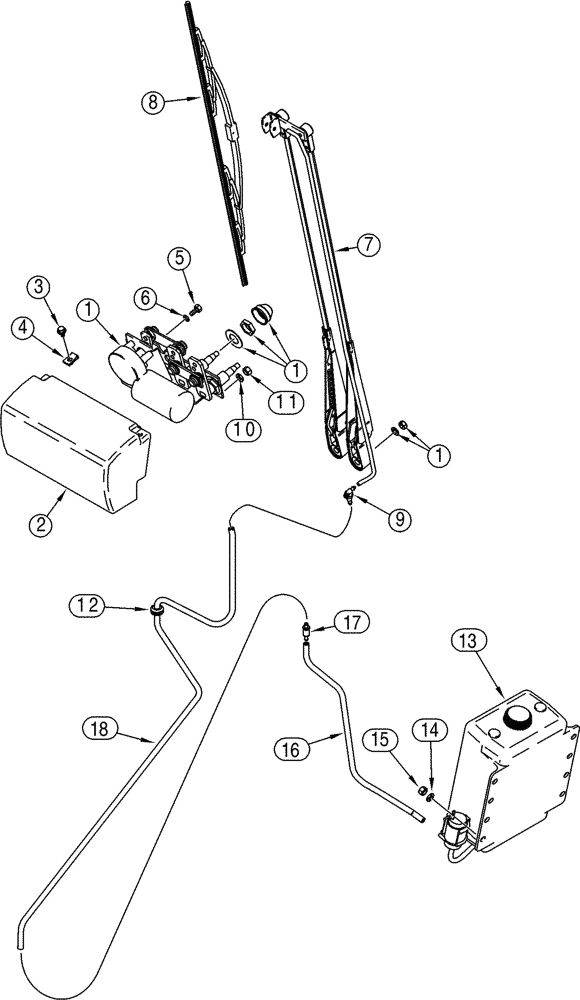

Запчасти Case 521D (04-30) - CAB - WIPER, FRONT (04) - ELECTRICAL SYSTEMS

1

322848A1

WIPER MOTOR

MOTOR, WIPER 24 volt; Windshield Wiper, Front

1шт.

1

322848A1R

REMAN-WIPER MOTOR

Wiper Motor

1шт.

1

322848A1C

CORE-WIPER MOTOR

Return Number, ELECTRONIC CONTROL UNIT

1шт.

1

84544472R

REMAN-WIPER MOTOR

521D (BEFORE S/N JEE0135500), Reman for New PN 322848A1

1шт.

1

84544472C

CORE-WIPER MOTOR

Return Number

1шт.

2

399232A1

COVER

Front Wiper

1шт.

3

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

2шт.

4

833-40306

SPRING NUT,M6, U

2шт.

5

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

6

192-81007

LOCK WASHER,1/4"

1шт.

7

321736A1

WIPER ARM

ARM, WIPER Dual

1шт.

8

A187574

WIPER BLADE

700 mm (27-9/16 in)

1шт.

9

1968053C1

ELBOW

1шт.

10

N8361

SPRING WASHER

Belleville

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

13

371185A1

RESERVOIR, WINDSHIEL,4.75L

Windshield Washer; Front and Rear Complete Tank

1шт.

13

48042633

PUMP,24V

Washer Bottle

2шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

16

371846A1

HOSE

2083 mm (82 in); Reservoir To Check Valve; Cut From 4-1056T1

1шт.

17

324203A1

CHECK VALVE

1шт.

18

324468A1

HOSE

1651 mm (65 in); Windshield Washer; Front

1шт.
