(04-22) - MOUNTING - LAMP, FRONT

Запчасти Case 521D (04-22) - MOUNTING - LAMP, FRONT (04) - ELECTRICAL SYSTEMS

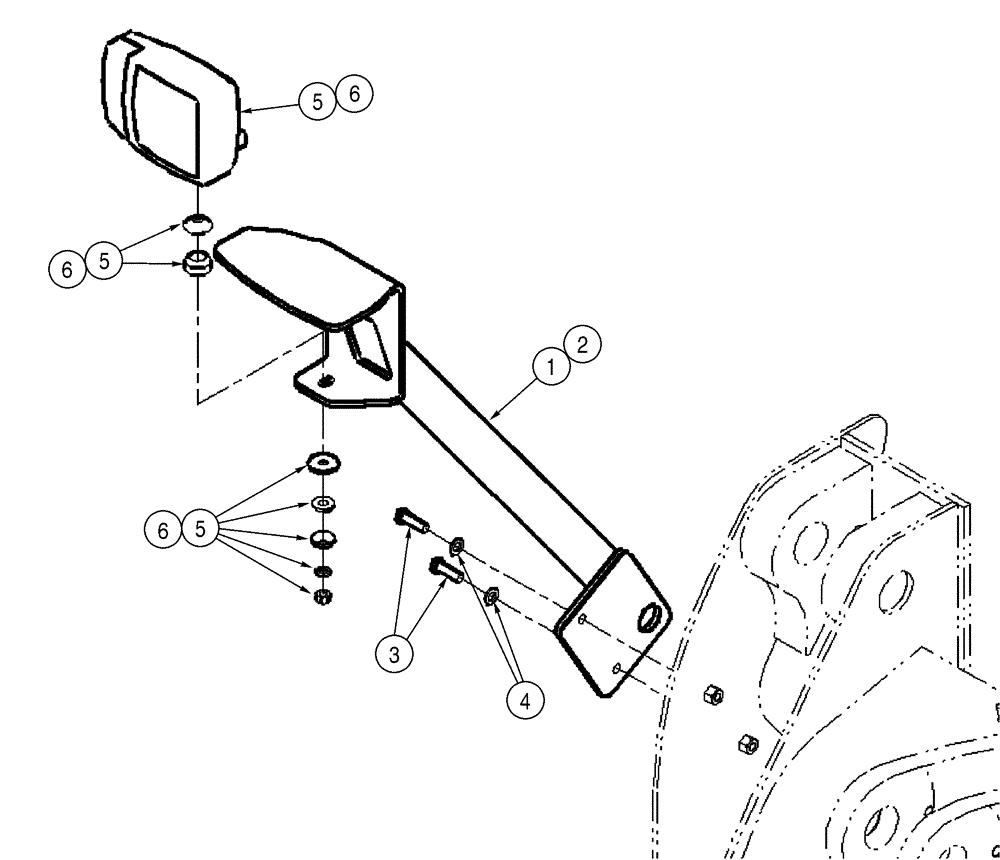

Схема запчастей Case 521D - (04-22) - MOUNTING - LAMP, FRONT (04) - ELECTRICAL SYSTEMS
5
3
2
4
6
5
1
6
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

380897A1

BRACKET

RH

1шт.

2

380898A1

BRACKET

LH

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

5

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Right-Hand; Includes Hardware; See Figure 04-23

1шт.

6

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Left-Hand; Includes Hardware; See Figure 04-23

1шт.
