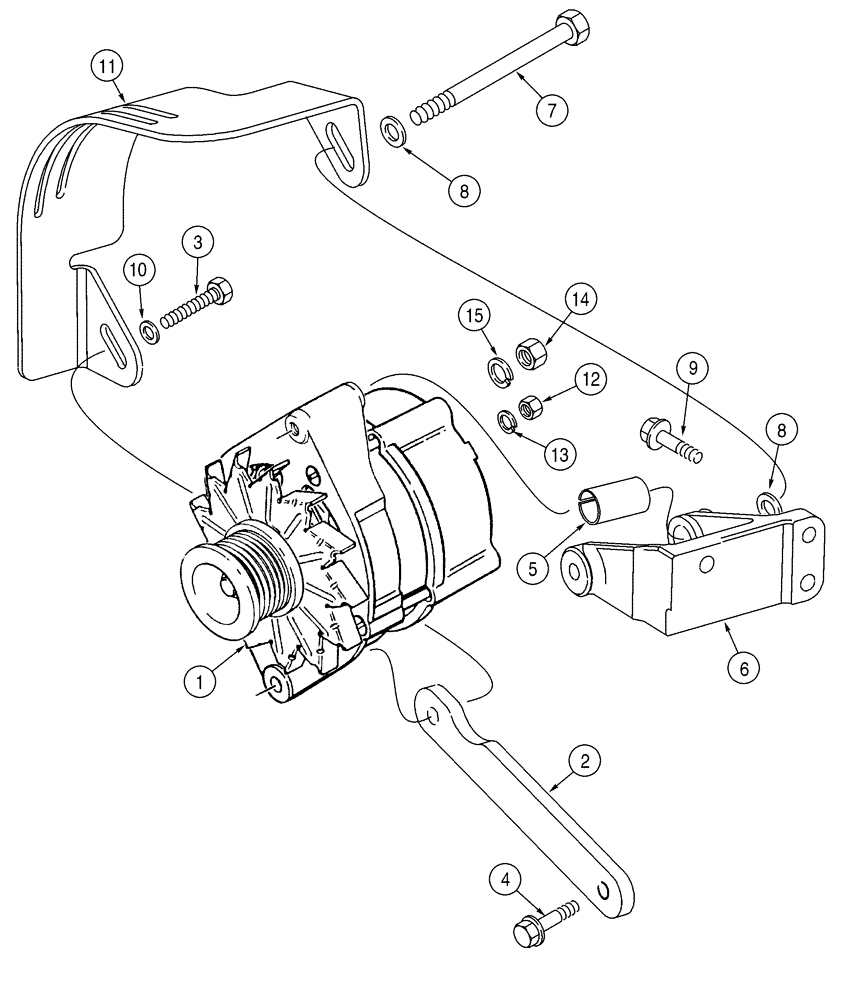

Запчасти Case 521D (04-21) - ALTERNATOR (A187916) - MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187916

ALTERNATOR,24V, 45A

24V, 45 amp; See Figure 04-02; If Used

1шт.

2

407393A1

BRACE

1шт.

4

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

5

J902469

SPACER

1шт.

6

J287096

SUPPORT

1шт.

7

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

1шт.

9

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

11

407328A1

SHIELD

1шт.

12

824-1405

NUT,M5, Cl 5

1шт.

13

892-11005

LOCK WASHER,M5

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

892-11008

LOCK WASHER,8mm ID

1шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
