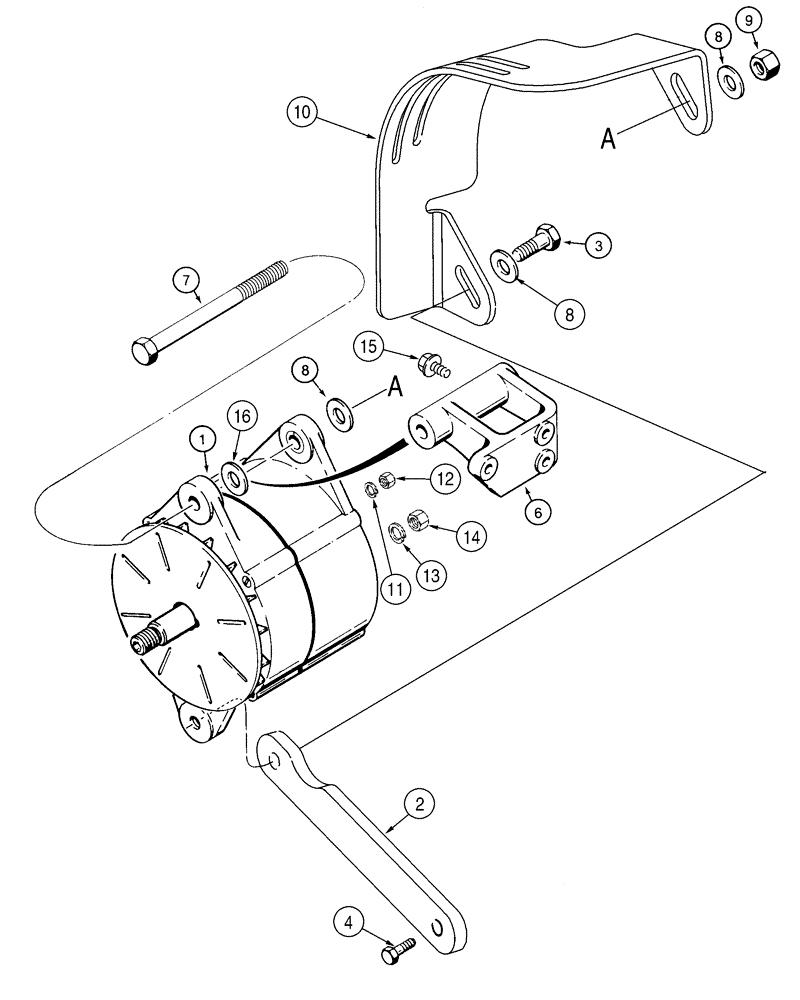

Запчасти Case 521D (04-20) - ALTERNATOR (1964860C1) - MOUNTING (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

24V, 65 amp; See Figure 04-01; If Used

1шт.

1

1964860C1GV

ALTERNATOR

Value

1шт.

1

1964860C1R

REMAN-ALTERNATOR

521D CASE WHEEL LOADER (BEFORE S/N JEE0135500), 24V, 65 amp, MOUNTING

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

407394A1

BRACE

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

J910923

BRACE

1шт.

7

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

1шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

9

231-4248

NUT,1/2"-13, GB

1шт.

10

407329A1

SHIELD

1шт.

11

892-11004

LOCK WASHER,M4

1шт.

12

824-1404

NUT,M4, Cl 5

1шт.

13

492-11044

LOCK WASHER,7/16"

1шт.

14

425-107

NUT,7/16"-14, G5

1шт.

15

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.
