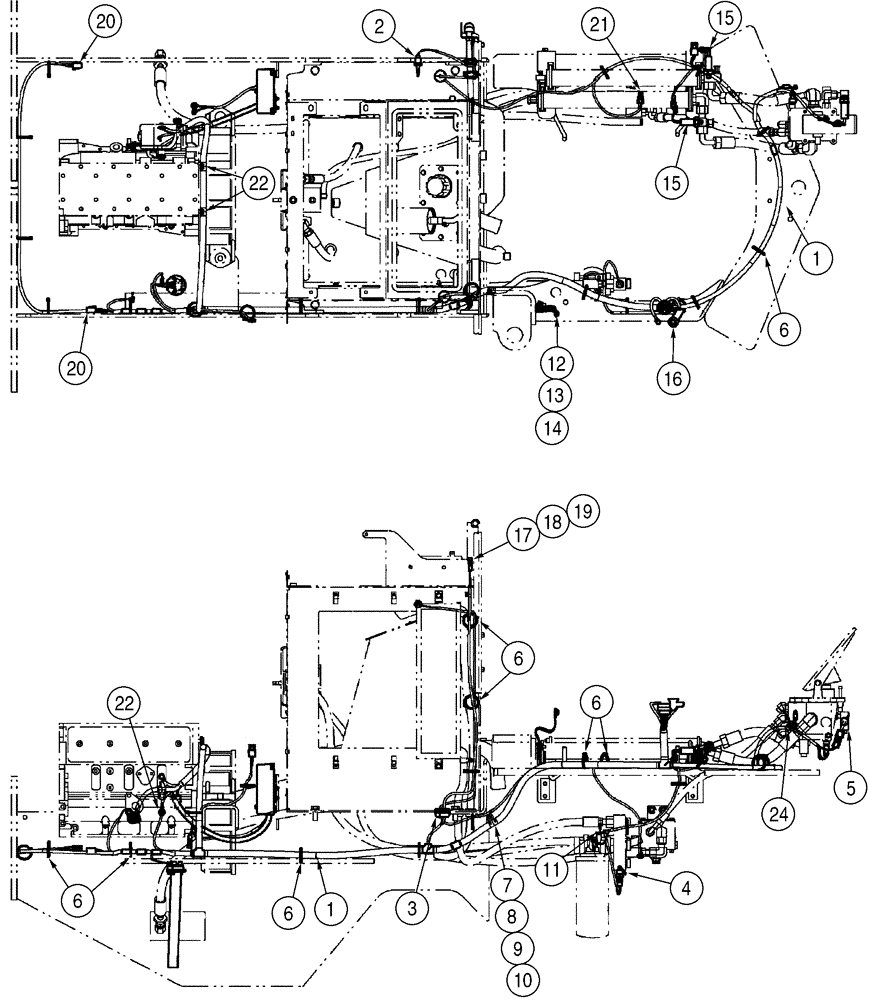

Запчасти Case 521D (04-16) - HARNESS, REAR CHASSIS (04) - ELECTRICAL SYSTEMS

1

369332A2

HARNESS

Rear Chassis

1шт.

2

143417A3

SENSOR

Coolant Level

1шт.

3

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 ID

2шт.

4

321446A1

SENSOR

Hydraulic Oil Temperature

1шт.

5

377898A3

SWITCH

Brake Declutch

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

Use Existing Hardware

1шт.

12

L126051

GROUND STRAP

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

14

253347A1

NUT,Hex, M10 x 1.5

M10; Brass

2шт.

15

377899A1

SWITCH

Redundant Brake

2шт.

16

L126713

BOOT

1шт.

17

515-2148

CLAMP,3/16", Insul, 1/4" Bolt

3/16 ID

1шт.

18

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

19

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

1шт.

20

280451A1

CONNECTOR,ELECTRIC

2шт.

21

245483C1

ELEC CONNECTOR,Male, 2 Pin

Solenoid, Fan Reversing

1шт.

22

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Use Existing Hardware

3шт.

23

245483C1

ELEC CONNECTOR,Male, 2 Pin

Solenoid, Ether Start

1шт.

24

291718A1

ELEC CONNECTOR,Female, 2 Pin

Solenoid, Parking Brake

1шт.
