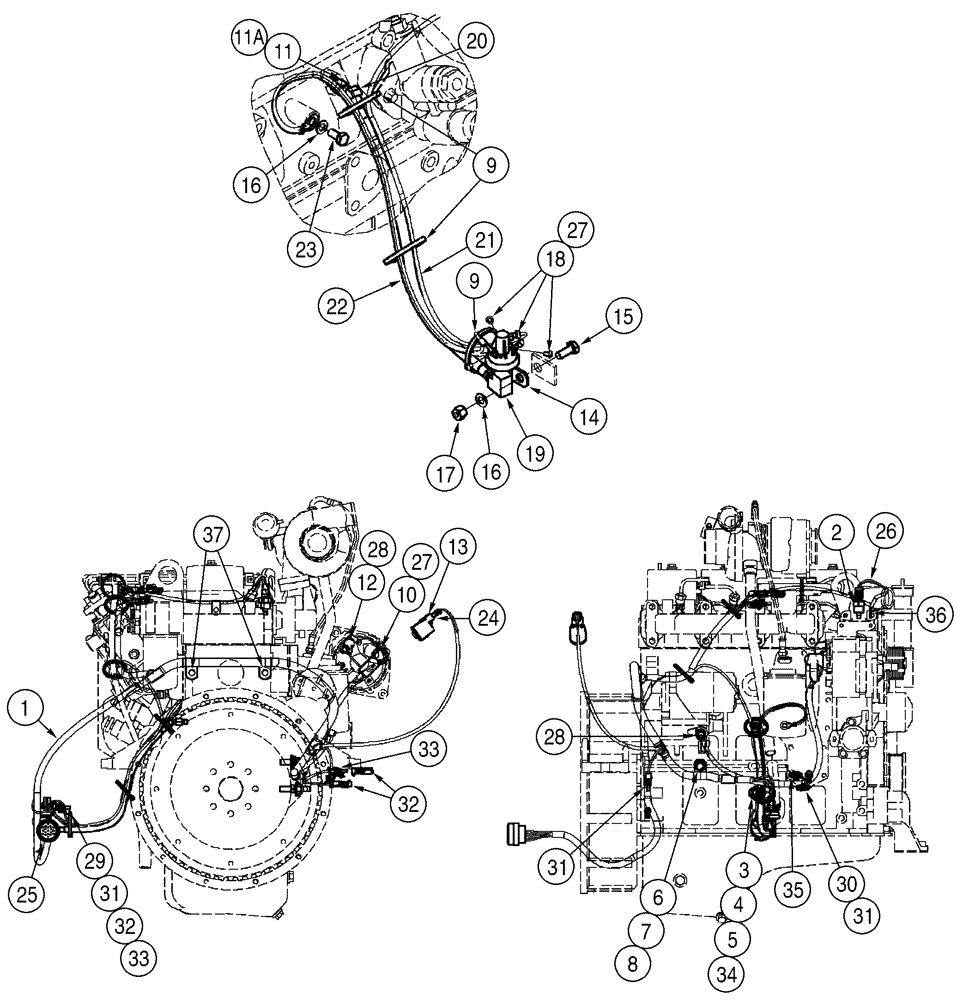

Запчасти Case 521D (04-15) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS

1

368360A3

HARNESS

Engine

1шт.

2

321446A1

SENSOR

Engine Cooling

1шт.

3

L127553

STUD

Brass

1шт.

4

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

5

L127555

NUT,Hex, 3/8" - 16

3/8; Brass

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

7

892-11012

LOCK WASHER,M12

1шт.

8

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

6шт.

10

L126713

BOOT

1шт.

11

250838A2

HYD CONNECTOR

Incl. Ref 11A

1шт.

11a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

12

S64612

BOOT

1шт.

13

279492A1

RESTRICTION SWITCH

Air Restricition

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

15

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

18

404224A1

SENDER UNIT

SENDER Engine Oil Pressure; Includes Hardware

1шт.

19

217-1050

90 ELBOW,1/8" - 27 NPTF Female

90°

1шт.

20

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

21

335976A1

HOSE ASSY.

Oil Pressure

1шт.

22

404222A1

ELECTRICAL WIRE

WIRE Ground

1шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

24

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Restriction

1шт.

25

373356A1

ELEC. TERMINAL PIN

Connector

1шт.

26

194788A1

CONNECTOR, 2-POLE

2 cavity; Engine Temperature

1шт.

27

1964709C1

TERMINAL CONNECTOR

2шт.

28

382256A1

TERMINAL CONNECTOR

2шт.

29

245484C1

ELEC CONNECTOR,3 Pin

Fuel Shutoff Solenoid

1шт.

30

245481C1

CONNECTION,ELECTRIC

Air Conditioning Compressor

1шт.

31

245480C1

ELEC CONNECTOR,1 Pin

Fuel; Air Conditioning Compressor; Ether Start

3шт.

32

245483C1

ELEC CONNECTOR,Male, 2 Pin

High Pressure Switch; Disconnect Switch; Ether Start

3шт.

33

245482C1

ELEC CONNECTOR,2 Pin

High Pressure Switch; Ether Start

2шт.

34

1964712C1

TERMINAL CONNECTOR

Ground

3шт.

35

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Use Existing Hardware

1шт.

36

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID; Use Existing Hardware

1шт.

37

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Use Existing Hardware

3шт.
